reliable dry cleaning machine shoprailway Easy operated for textile industries
| Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E | |
| Washing Capacity | kg | 8 | 10 | 12 | 14 | |
| Cylinder Capacity | L | 140 | 160 | 200 | 240 | |
| Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | |
| Extract Speed | r/min | 370 | 370 | 370 | 370 | |
| Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 | |
| Capacity | #3 | L | 112 | 112 | 112 | 129 |
| Still Tank Capacity | L | 150 | 150 | 150 | 150 | |
| Filter Area | m2 | 2.8 | 2.8 | 3 | 3 | |
| Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 | |
| Electric | Still | kw | 6 | 6 | 6 | 6 |
| Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
| Maximum Steam | kg/h | 30 | 32 | 34 | 36 | |
| Consumption | ||||||
| Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 | |
| External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
| Thickness | mm | 1450 | 1450 | 1450 | 1450 | |
| Height | mm | 2040 | 2040 | 2040 | 2040 | |
| Weight | kg | 800 | 850 | 900 | 950 | |
| Remark | 1.S－ Steam type E－ Electric type | |||||
| 2.Steam Pressure：4-6KG/CM2; Cooling Water Pressure：1.5-2kg/cm2 | ||||||
| 3.Power Source：380V/3P/50HZ | ||||||
Workshop Products
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.
Product Details

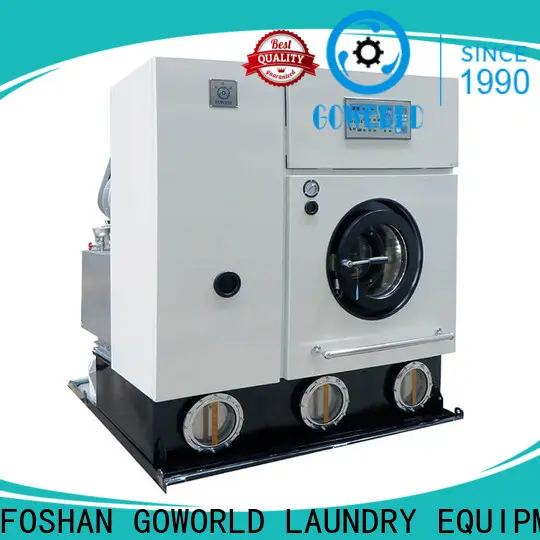

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
