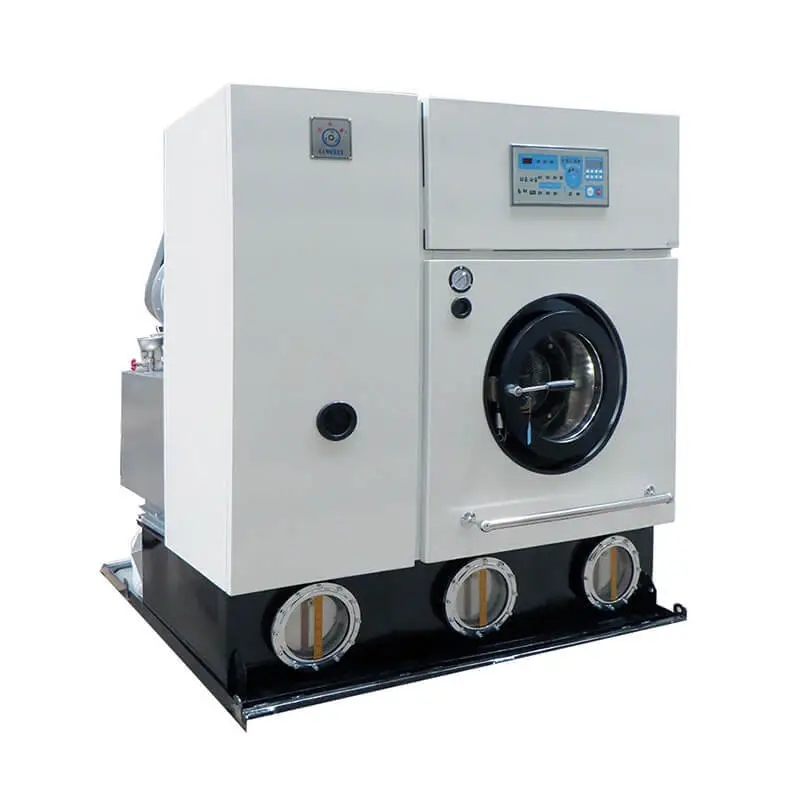

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 1

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 2

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 3

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 4

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries

Machine Type:

Dry cleaning machine model TC-3

Place of Origin:

Guangdong,China

Lead Time:

25-30working days after TT deposit

Suitable For:

Laundry shop,commercial laundromat,fire brigade,hotel,railway company

Machine Voltage:

380V,220V

Heat Way:

Electric heating,steam heating

Solvent:

Perchloroethylene

Inquiry

Write a Review

Product Specifications

GOWORLD

Model		Unit	TC3015S/E	TC3020S/E	TC3025S/E	TC3028S/E
Washing Capacity		kg	8	10	12	14
Cylinder Capacity		L	140	160	200	240
Washing Rotation Speed		r/min	34	34	34	34
Extract Speed		r/min	370	370	370	370
Base Tank	#1	L	112	112	112	129
	#2	L	127	127	127	147
Capacity	#3	L	112	112	112	129
Still Tank Capacity		L	150	150	150	150
Filter Area		m2	2.8	2.8	3	3
Total Motor Power		kw	4	4	4.5	4.5
Electric	Still	kw	6	6	6	6

Heated Power	Drying	kw	6.75	6.75	6.75	6.75
Maximum Steam		kg/h	30	32	34	36
Consumption
Maximum Water Consumption		kg/h	400	450	500	550
External Size	Width	mm	1690	1690	1690	1690
	Thickness	mm	1450	1450	1450	1450
	Height	mm	2040	2040	2040	2040
Weight		kg	800	850	900	950
Remark		1.S－ Steam type E－ Electric type
		2.Steam Pressure：4-6KG/CM2; Cooling Water Pressure：1.5-2kg/cm2
		3.Power Source：380V/3P/50HZ

Workshop Products

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 5

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 6

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 7

◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.

Product Details

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 8

NO.1 / 8kg-14kg dry-cleaning machine solvent tanks

Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 9

NO.2 / 8kg-14kg dry-cleaning machine water separator

Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 10

NO.3 / 8kg-14kg dry-cleaning machine filter

Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.

8kg-14kg Dry cleaning machine environment friendly full closed for hotel,laundry shop,railway company,textile industries 11

NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system

Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
