Company Advantages1. The design of GOWORLD dry cleaning equipment suppliers centers on human. It considers the principle of structural mechanics and ergonomics, foot biomechanics, weight distribution focus, and so forth. It is resistant to air, steam, water and other weak corrosive media
2. The product has a large assortment of applications it is suitable for. It is designed to be serviced, which is much more cost effective than replacement
3. This product is electrically safe. Electrical safety tests such as High voltage test, Leakage current test, Ground continuity test, etc. have proved its electrical safety. It allows users to tailor the machine programmes exactly to their laundry requirements
4. Reliability is one of its obvious advantages. High-performance electrical components and electrical protection systems help prevent accidents. Its operation panel provides selections of Chinese or English display
Model | Unit | TC4020S/E | TC4025S/E | TC4028S/E | TC4032S/E | TC4036S/E | TC4040S/E |
Washing Capacity | kg | 10 | 12 | 14 | 16 | 18 | 20 |
Cylinder Capacity | L | 160 | 200 | 240 | 280 | 320 | 360 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 129 | 164 | 164 | 164 |
| #2 | L | 127 | 127 | 147 | 177 | 177 | 177 |
Capacity | #3 | L | 112 | 112 | 129 | 180 | 180 | 180 |
Still Tank Capacity | L | 150 | 150 | 150 | 205 | 205 | 205 |
Filter Area | m2 | 2.8 | 3 | 3 | 3 | 3 | 3 |
Total Motor Power | kw | 4 | 4.5 | 4.5 | 6 | 6 | 6 |
Electric | Still | kw | 6 | 6 | 6 | 6 | 6 | 6 |
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 8.1 | 8.1 | 8.1 |
Maximum Steam | kg/h | 32 | 34 | 36 | 40 | 42 | 44 |
Consumption |
|
|
|
|
|
|
|
Maximum Water Consumption | kg/h | 450 | 500 | 550 | 580 | 600 | 620 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1940 | 1940 | 1940 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2200 | 2200 | 2200 |
Weight | kg | 850 | 900 | 950 | 1100 | 1150 | 1200 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Lots of recruitment of nylon filter.
◆ Full-closed refrigerated recovery system.
◆ Solvent: Polyethylene.can be cycle to use.
◆ Electric or steam heating can be choose by customer.
◆ Three kinds of solvent tanks to meet demand for colored clothes.

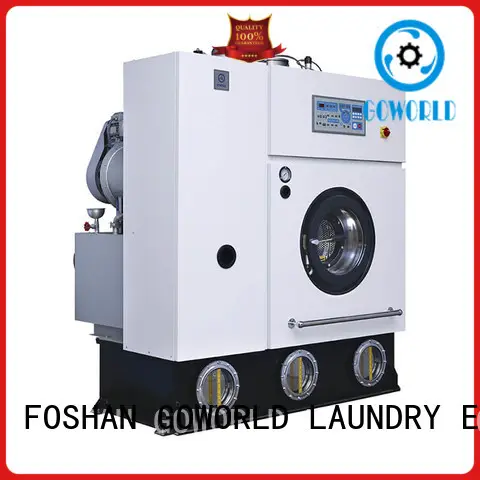

10kg-20kg hotel clothes dry cleaner environment friendly full closed machine is through the collection of the organic solvents,filtered,and the condensate recovery when dry cleaning,implements the dry cleaning solution recycling,save the cost of solvent and has reached the requirement of environmental protection,have the characteristics of carbon basket system and full-closed refrigerated recovery system,no need to add diatom,so it’s no pollution to the air, no harm to human, keep the room fresh.it’s especially suitable for hotel,laundry shop,textile industries,fire brigade etc.
NO.1 / 10kg-20kg hotel clothes dry cleaner full closed door lock system
Full-closed door lock system,Pneumatically controlled door lock switch, the outside can not be opened during work operation, preventing dry cleaning oil leakage.
NO.2 / 10kg-20kg hotel clothes dry cleaner button trap
Button trap,Stainless steel component parts to ensure stable running .The working solvent is coarsely filtered to remove impurities such as buttons and coins that are dropped during the washing process.
NO.3 / 10kg-20kg hotel clothes dry cleaner lint trap
Lint trap,The door is equipped with a safety switch,When the door is opened, the computer alarms, the machine is self-locking and cannot work.
NO.4 / 10kg-20kg hotel clothes dry cleaner consists systems
Hotel clothes dry cleaner consists systems:washing system,filtration system,distillation system,drying and recycling system,solvent storage tank,pump,lint trap and button trap.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is very competitive in manufacturing and marketing dry cleaning equipment suppliers . We are known as one of the pioneers in this industry.
2. dry cleaning machine is of superior quality with high performance.
3. Our firm bears societal responsibilities. We employ technology solutions for effective wastewater treatment to conserve resources and reduce prices.
