Model | Unit | TC4020S/E | TC4025S/E | TC4028S/E | TC4032S/E | TC4036S/E | TC4040S/E | |
Washing Capacity | kg | 10 | 12 | 14 | 16 | 18 | 20 | |
Cylinder Capacity | L | 160 | 200 | 240 | 280 | 320 | 360 | |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | 34 | 34 | |
Extract Speed | r/min | 370 | 370 | 370 | 370 | 370 | 370 | |
Base Tank | #1 | L | 112 | 112 | 129 | 164 | 164 | 164 |
#2 | L | 127 | 127 | 147 | 177 | 177 | 177 | |
Capacity | #3 | L | 112 | 112 | 129 | 180 | 180 | 180 |
Still Tank Capacity | L | 150 | 150 | 150 | 205 | 205 | 205 | |
Filter Area | m2 | 2.8 | 3 | 3 | 3 | 3 | 3 | |
Total Motor Power | kw | 4 | 4.5 | 4.5 | 6 | 6 | 6 | |
Electric | Still | kw | 6 | 6 | 6 | 6 | 6 | 6 |
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 8.1 | 8.1 | 8.1 |
Maximum Steam | kg/h | 32 | 34 | 36 | 40 | 42 | 44 | |
Consumption | ||||||||
Maximum Water Consumption | kg/h | 450 | 500 | 550 | 580 | 600 | 620 | |
External Size | Width | mm | 1690 | 1690 | 1690 | 1940 | 1940 | 1940 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | |
Height | mm | 2040 | 2040 | 2040 | 2200 | 2200 | 2200 | |
Weight | kg | 850 | 900 | 950 | 1100 | 1150 | 1200 | |
Remark | 1.S- Steam type E- Electric type | |||||||
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 | ||||||||
3.Power Source:380V/3P/50HZ |
Workshop Products
◆ Lots of recruitment of nylon filter.
◆ Full-closed refrigerated recovery system.
◆ Solvent: Polyethylene.can be cycle to use.
◆ Electric or steam heating can be choose by customer.
◆ Three kinds of solvent tanks to meet demand for colored clothes.
Product Details

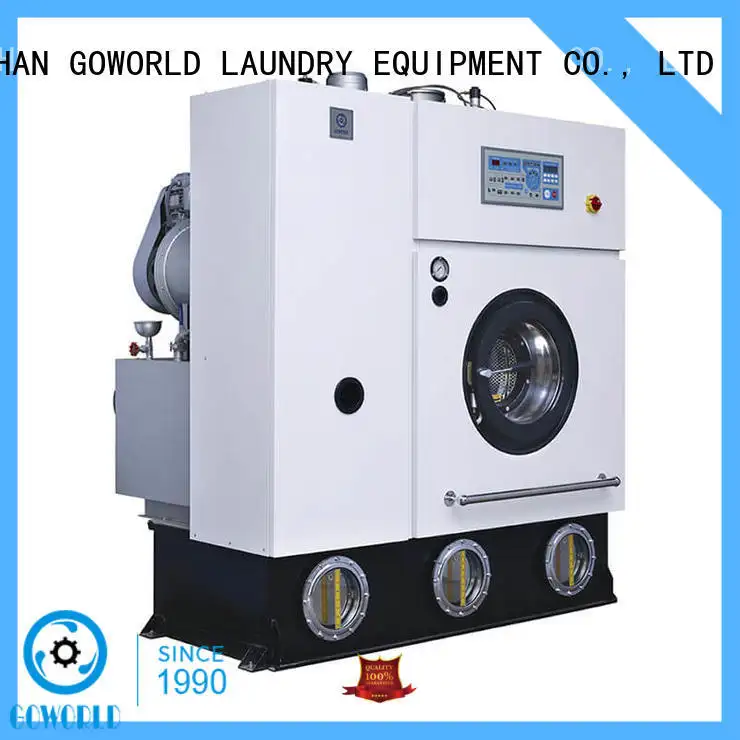

10kg-20kg hotel clothes dry cleaner environment friendly full closed machine is through the collection of the organic solvents,filtered,and the condensate recovery when dry cleaning,implements the dry cleaning solution recycling,save the cost of solvent and has reached the requirement of environmental protection,have the characteristics of carbon basket system and full-closed refrigerated recovery system,no need to add diatom,so it’s no pollution to the air, no harm to human, keep the room fresh.it’s especially suitable for hotel,laundry shop,textile industries,fire brigade etc.
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Union hydrocarbon unisec dry cleaning machine
Machines details introduction
1, Our perchloroethylene dry cleaning machine has three bottom tanks, it can separate clean, dirty and working solvent, then avoid mixing the solvent.
2, The perchloroethylene dry cleaning machine has high quality recycle working system, including filter, still tank, still cooler, water separator and cleaning tank, which can save solvent (perchloroethylene), more than 99.8% solvent can be recycled, no pollution to the air, no harm to human, keep the room fresh.
3,Main parts with high quality stainless or non-ferrous metals stamping with a mold crafted, using high-temperature galvanizing technology to greatly increase the corrosion resistance of the machine.
4. Fluff collector uses nylon bag on the filter to prevent blockage.
5. High-speed fan can speed up the drying and cooling rate.
6. Heating the solvent by distillation tank sent vapor into the condenser, and then purified solvent.
7. Dry cleaning oil filter can remove impurities, particles, pigment, to ensure clean dry oil played a significant role in enhancing the quality of laundry.
8. Avoid problems of dyeing other expensive clothing, reduce the number of distillation, make the machine a long life.
9. The chemical solvent for this dry cleaning machines, what we use usually called tetrachloroethylene, carbon dichloride, ethylene tetrachloride, polyethylene, pce, perc, perchloroethylene.
10. Our perchloroethylene dry cleaning machine capacity have 8kg, 10kg 12kg and 16kg.
Machines specification
Model | GXQ-8 | GXQ-10 | GXQ-12 | GXQ-16 |
Washing Capacity(kg) | 8 | 10 | 12 | 16 |
Capacity of drum(L) | 137 | 174 | 182 | 312 |
Washing Speed(r/min) | 34 | 34 | 34 | 34 |
Extracting Speed(r/min) | 370 | 370 | 370 | 370 |
Hydraulic Pump Power(kw) | 0.75 | 0.75 | 0.75 | 1.5 |
Filter electrical engineering(kw) | 0.55 | 0.55 | 0.55 | 0.55 |
Power Supply(V) | 220/380 | 380 | 380 | 380 |
Frequency(Hz) | 50 | 50 | 50 | 50 |
Dimension(L.W.H) (mm) | 1480×1280×2050 | 1540×1450×2040 | 1520×1360×2110 | 2070×1440×2250 |
Total Weight(kg) | 700 | 800 | 950 | 1200 |
Our advantage
1.We are a professional manufacturer,have much successful laundry projects experiences
2.We supply the high quality machines,with competitive price
3.Rapid response of after-sales service
4 Some models of the machines have wearing parts, we will add extra one for free when we delivery.
5.One year warranty
Scope of the machine
Our perchloroethylene dry cleaning machine widely used in: Hotels, Hospitals, Holiday village,Schools, Dry cleaning shops, Governments etc
