Company Advantages1. The advantages of our industrial tumble dryer include hotel cloth dryer. It can be operated in both manual and automatic modes
2. The product is successful in getting customers' satisfaction and has a broad market application prospect. It makes the cleaned textiles meet appropriate hygienically clean standards and established industry guidelines
3. It comes with the desired durability. The testing is done by simulating the load-bearing during the expected full life span of a mattress. And the results show it is extremely durable under testing conditions. It will keep running at large loads for years to come, giving users quite a bit of extra productivity
Model | GQZ-150Q | GQZ -100Q | GQZ-80Q | GQZ-50Q | GQZ-35Q | GQZ -25Q | GQZ -15Q |
kg | 150 | 100 | 80 | 50 | 35 | 25 | 15 |
mm | Φ1750×1200 | Φ1460×1200 | Φ1300×1200 | Φ1100×1060 | Φ990×930 | Φ915×770 | Φ760×680 |
kw | 5.2 | 3 | 2.7 | 2.2 | 2.2 | 1.5 | 0.92 |
kg/h | 4.95 | 3.45 | 2.7 | 2.1 | 1.8 | 1.5 | 1.05 |
kg | 1300 | 800 | 600 | 500 | 450 | 350 | 250 |
mm | 1830 | 1470 | 1305 | 1200 | 1100 | 970 | 820 |
mm | 1760 | 1740 | 1650 | 1600 | 1480 | 1280 | 1160 |
mm | 2800 | 2420 | 2340 | 2200 | 2050 | 1900 | 1500 |
Model | Unit | D12Q | D10Q | D08Q |
Capacity | kg | 12 | 10 | 8 |
Drum size(Φ×L) | mm | Φ680x680 | Φ680x570 | Φ680x450 |
Motor power | kw | 0.74 | 0.74 | 0.74 |
LPG Consumption | kg/h | (Q)0.9 | (Q)0.75 | (Q)0.6 |
Weight | kg | 190 | 170 | 150 |
External Size | Length | mm | 740 | 740 | 740 |
Width | mm | 1100 | 990 | 870 |
Height | mm | 1320 | 1320 | 1320 |

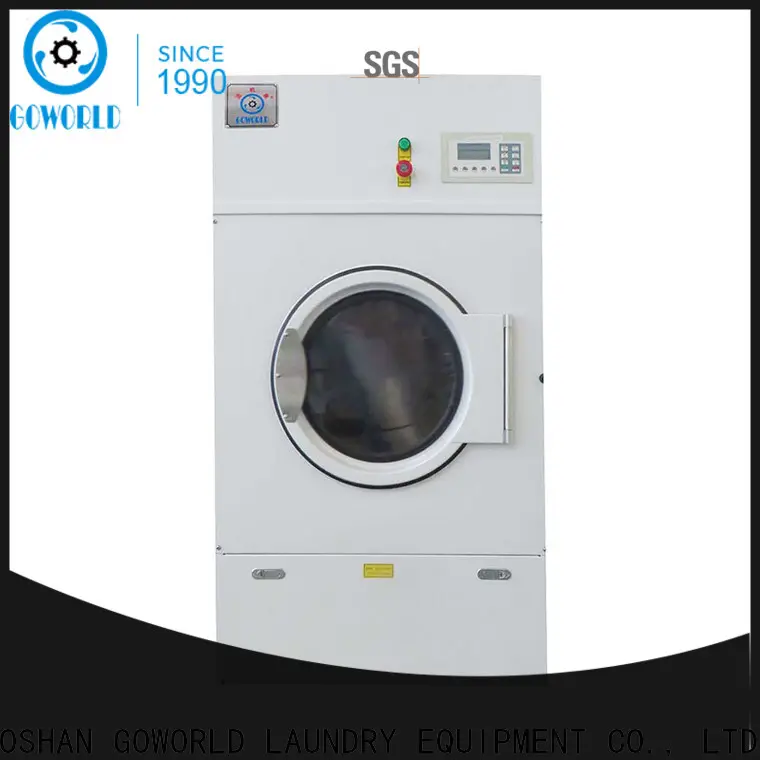

◆ 8kg to 150kg LPG gas heat commercial clothes drying machine.
◆ Equipped gated security linkage will stop automatic when loading door open in working process.
◆ Equipped with independent stop switch can quickly cut off power supply when the equipment in abnormal situation to ensure safety.
8kg-150kg LPG gas heating commercial clothes towels and tablecloths drying machine is a series of commercial drying machine under the GOWORLD brand.It has the characteristics of drying machine use LPG gas as source,LPG gas is more economic than electric in some country,so it can low down the machine running cost but temperature still rising fast,it’s especially suitable for troop clothes drying,fire brigade clothes drying,pharmaceutical towels drying,garments factory towels drying,laundering & dyeing tablecloths drying,etc.all the drying machine models have protect by CE certifications.
NO.1 / Automatic computer contro
Automatic computer control,the working condition can be displayed on the screen directly.
NO.2 / Frequency inverter
Frequency inverter, conversion and microelectronic technology, controlling the power of AC motor to save the working power for machine.
NO.3 / Dust collecting
Dust collecting, have the featuring of beautiful appearance, long service life and thorough removal of impurities.
NO.4 / Rubber
Rubber,can support temperature requirements of -5°-+150°C, can meet the oil resistance, steam resistance, high strength, flame retardant and conductive silicone rubber.
NO.5 / Big air exhaust
Big air exhaust design ,it to put the extra heat outside,protect the machine away from over-temperature, It is necessary to avoid the stoppage.
NO.6 / LPG gas valve
The LPG gas system can make the pressure does not exceed the allowable value. There are electric heating,LPG gas heating,natural gas heating and steam heat for industrial tumble dryer.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
