10.5kg-150kg Automatic washer extractor |soft mount washer for hotel hospital laundry center
1
Product Specifications
| Mode | XGQ-150F | XGQ-120F | XGQ-100F | XGQ-80F | XGQ-50F(FD) | XGQ-35F(FD) | XGQ-25F(FD) | XGQ-15F | XGO-12F | XGO-10F | ||
| Capacity | kg | 150 | 120 | 100 | 80 | 50 | 35 | 25 | 15 | 12 | 10.5 | |
| Drum size(Φ×L) | mm | Φ1320×1100 | Φ1220×1030 | Φ1220×860 | Φ1220×690 | Φ955×700 | Φ955×490 | Φ740×580 | Φ640x470 | Φ640x375 | Φ580x400 | |
| Washing speed | r/min | 32 | 33 | 33 | 33 | 36 | 36 | 38 | 45 | 45 | 47 | |
| Extract speed | r/min | 660 | 670 | 670 | 670 | 750 | 750 | 850 | 915 | 750 | 800 | |
| Electricity consumption | kw/h | 4.5 | 3.4 | 3.1 | 2.8 | 2.1/12 | 1.8/9 | 1.5/5 | 1/3 | / | / | |
| Water consumption | m3 | 2 | 1.5 | 1.3 | 1.1 | 0.6 | 0.5 | 0.4 | 0.24 | / | / | |
| Steam consumption | kg/batch | 130 | 100 | 80 | 70 | 40 | 30 | 20 | 12 | / | / | |
| Motor power/ Heat power | kw | 22 | 18.5 | 15 | 11 | 7.5/36 | 5.5/27 | 3.0(3P)/21 2.2(1P)/21 | 2.2(1P/3P)/15 | 1.5(3P)/12 1.8(1P)/12 | 1.5(1P/3P)/9 | |
| Weight | kg | 4100 | 3500 | 3150 | 2850 | 1700 | 1500 | 1000 | 520 | 650 | 420 | |
| External Size | Length | mm | 1950 | 1850 | 1850 | 1850 | 1440 | 1440 | 1140 | 900 | 900 | 830 |
| Width | mm | 2120 | 2040 | 1840 | 1690 | 1530 | 1350 | 1330 | 1100 | 1000 | 1000 | |
| Height | mm | 2060 | 2030 | 2030 | 2030 | 1710 | 1710 | 1420 | 1300 | 1300 | 1160 | |
Workshop Products
◆ Japanese V-belts, run smoothly.
◆ Delta inverter.
◆ Frequency controlled motor.
◆ Japanese bearings.
◆ Europe Schneider electric parts. safety and reliable.
◆ #304 Stainless steel cabinet and drum.
◆ Imported Japanese seal makes no leakage.
◆ USB port microprocessor enables to reprogram freely&easily by PC.
◆ Easy access to all parts for maintenance.
◆ Large drain valves.
◆ Each drum tested by dynamic balance machine.
◆ Manual or automatic detergent supply system can be order to choose.
◆ Electric heating ,steam heating can be order to choose.
Products Details

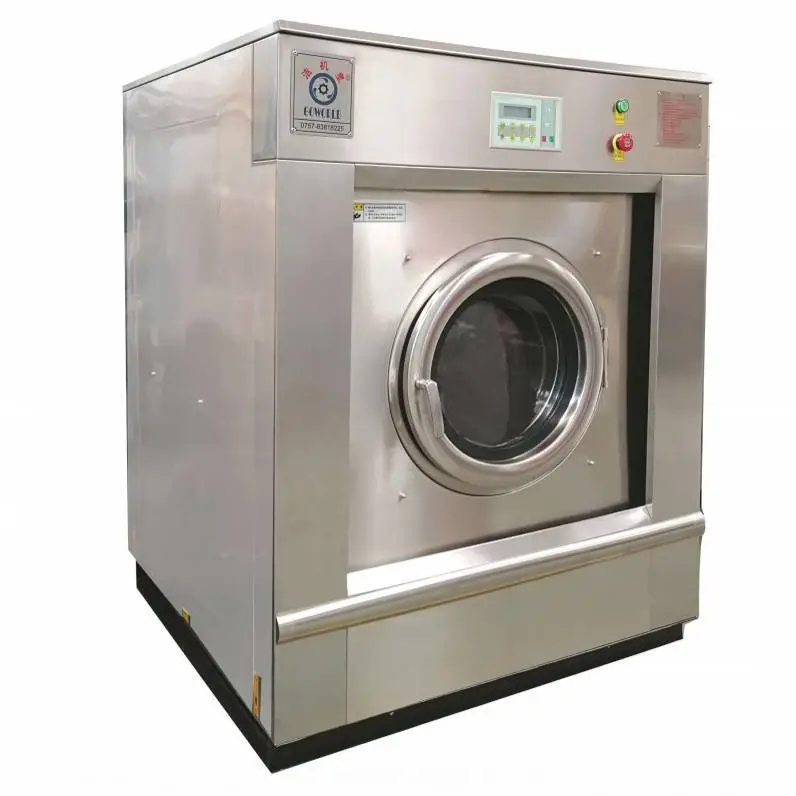

The 10.5kg-150kg automatic soft mount washer extractor is a series of laundry equipment under the GOWORLD brand.It has the characteristics of suspension structure and long-term continuous operation,The whole washer extractor tank system is installed suspended on the spring and damping devices,when the machine washer and water extracting, shock absorption is up to 95%,and without foundation required when using, it’s especially suitable for hotel laundry equipment,hospital laundry equipment,restaurants laundry equipment, and railway company laundry equipment etc. The use of high-powered motor and converter motor making this series of laundry equipment more stable and energy-saving, to meet the big capacity need for hotel and hospital,our soft mount type washer extractor can make the 150kg capacity,and all the model are protect by CE certifications..
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
