Company Advantages1. The quality and safety testings of GOWORLD dry cleaning machine cover several aspects. They include EMI test, insulation test, overload and overvoltage protection, as well as housing quality. It can help save money on utilities and labor costs
2. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has set up a relatively perfect sales network and after-sales service system. It can even handle fine clothing such as cashmere, woolen sweaters and silk
3. The primary advantage of this product is that it performs exceptionally well. Being programmable, it renders greater efficiency and flexibility
4. The quality of this product is effectively controlled by implementing the quality control system. This product is designed with overload protection
5. This product is qualified with many international certificates. It consumes little energy and thus saves the environment
Model | Unit | TC4020S/E | TC4025S/E | TC4028S/E | TC4032S/E | TC4036S/E | TC4040S/E |
Washing Capacity | kg | 10 | 12 | 14 | 16 | 18 | 20 |
Cylinder Capacity | L | 160 | 200 | 240 | 280 | 320 | 360 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 129 | 164 | 164 | 164 |
| #2 | L | 127 | 127 | 147 | 177 | 177 | 177 |
Capacity | #3 | L | 112 | 112 | 129 | 180 | 180 | 180 |
Still Tank Capacity | L | 150 | 150 | 150 | 205 | 205 | 205 |
Filter Area | m2 | 2.8 | 3 | 3 | 3 | 3 | 3 |
Total Motor Power | kw | 4 | 4.5 | 4.5 | 6 | 6 | 6 |
Electric | Still | kw | 6 | 6 | 6 | 6 | 6 | 6 |
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 8.1 | 8.1 | 8.1 |
Maximum Steam | kg/h | 32 | 34 | 36 | 40 | 42 | 44 |
Consumption |
|
|
|
|
|
|
|
Maximum Water Consumption | kg/h | 450 | 500 | 550 | 580 | 600 | 620 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1940 | 1940 | 1940 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2200 | 2200 | 2200 |
Weight | kg | 850 | 900 | 950 | 1100 | 1150 | 1200 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Lots of recruitment of nylon filter.
◆ Full-closed refrigerated recovery system.
◆ Solvent: Polyethylene.can be cycle to use.
◆ Electric or steam heating can be choose by customer.
◆ Three kinds of solvent tanks to meet demand for colored clothes.

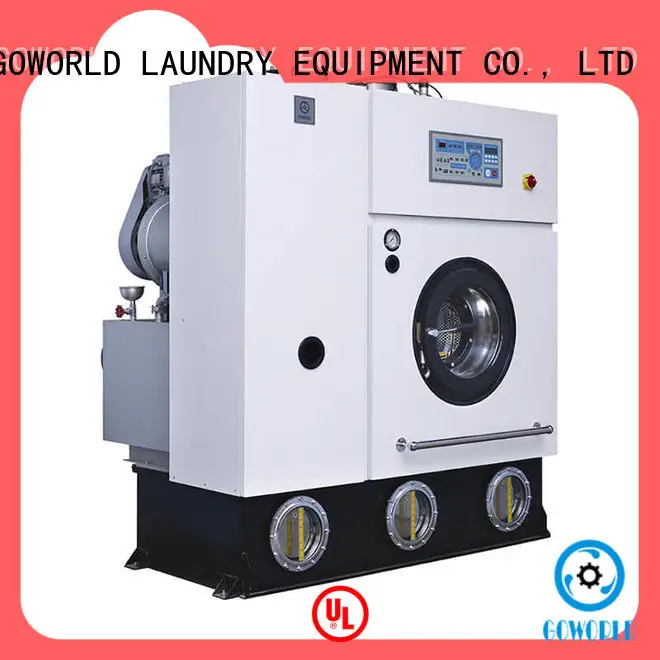

10kg-20kg hotel clothes dry cleaner environment friendly full closed machine is through the collection of the organic solvents,filtered,and the condensate recovery when dry cleaning,implements the dry cleaning solution recycling,save the cost of solvent and has reached the requirement of environmental protection,have the characteristics of carbon basket system and full-closed refrigerated recovery system,no need to add diatom,so it’s no pollution to the air, no harm to human, keep the room fresh.it’s especially suitable for hotel,laundry shop,textile industries,fire brigade etc.
NO.1 / 10kg-20kg hotel clothes dry cleaner full closed door lock system
Full-closed door lock system,Pneumatically controlled door lock switch, the outside can not be opened during work operation, preventing dry cleaning oil leakage.
NO.2 / 10kg-20kg hotel clothes dry cleaner button trap
Button trap,Stainless steel component parts to ensure stable running .The working solvent is coarsely filtered to remove impurities such as buttons and coins that are dropped during the washing process.
NO.3 / 10kg-20kg hotel clothes dry cleaner lint trap
Lint trap,The door is equipped with a safety switch,When the door is opened, the computer alarms, the machine is self-locking and cannot work.
NO.4 / 10kg-20kg hotel clothes dry cleaner consists systems
Hotel clothes dry cleaner consists systems:washing system,filtration system,distillation system,drying and recycling system,solvent storage tank,pump,lint trap and button trap.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is proud of its exceptional record of producing a series of dry cleaning machine in such an efficient way.
2. Our technology is always one step ahead than other companies for dry cleaning washing machine.
3. We always adhere to the philosophy of developing together with our society. We adopt a sustainable development plan and re-adjust the industrial structure so as to protect our environment and conserve resources. Get an offer!
