Company Advantages1. The quality of GOWORLD dry cleaning machine is guaranteed. It is manufactured in a highly regulated environment where quality systems like FMEA are key to medical device manufacturing. Its design ensures the best defense against the spread of cross infections and harmful microorganisms
2. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD focuses on company credit. It is ideal for residential and nursing homes, hotels, hospitals, student accommodation, etc
3. The product is of reliable quality because it is manufactured and tested in accordance with widely recognized quality standards. It can even handle fine clothing such as cashmere, woolen sweaters and silk
4. Strict testing: the product undergoes extremely strict testing more than once to achieve its superiority over other products. The testing is conducted by our rigorous testing personnel. It is designed to be serviced, which is much more cost effective than replacement
5. Product performance and quality are in line with industry specifications.
Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E |
Washing Capacity | kg | 8 | 10 | 12 | 14 |
Cylinder Capacity | L | 140 | 160 | 200 | 240 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 |
Capacity | #3 | L | 112 | 112 | 112 | 129 |
Still Tank Capacity | L | 150 | 150 | 150 | 150 |
Filter Area | m2 | 2.8 | 2.8 | 3 | 3 |
Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 |
Electric | Still | kw | 6 | 6 | 6 | 6 |
|
|
|
|
|
|
|
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
Maximum Steam | kg/h | 30 | 32 | 34 | 36 |
Consumption |
|
|
|
|
|
Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2040 |
Weight | kg | 800 | 850 | 900 | 950 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.

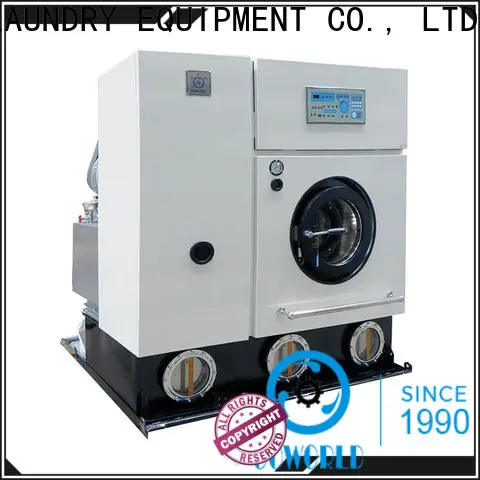

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD emphasizes much on its innovative ability and independent R&D ability.
2. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD puts the emphasis on continuous improvement of dry cleaning machine .
