GOWORLD stainless steel semi automatic laundry machine Easy to control for Commercial laundromat202
Company Introduction :
China manufacturer of washing equipments, looking for trading company or washing equipments, laundry agents all over the world,our products:
1. washer extractor, from 15kg,150kg
2. tumble dryer, capacity from 15kg,150kg
3. industrial washing machine,from 25kg,40kg,60kg,80kg,100kg,120kg
4. china well known laundry machine band,popular in laundry equipment industry

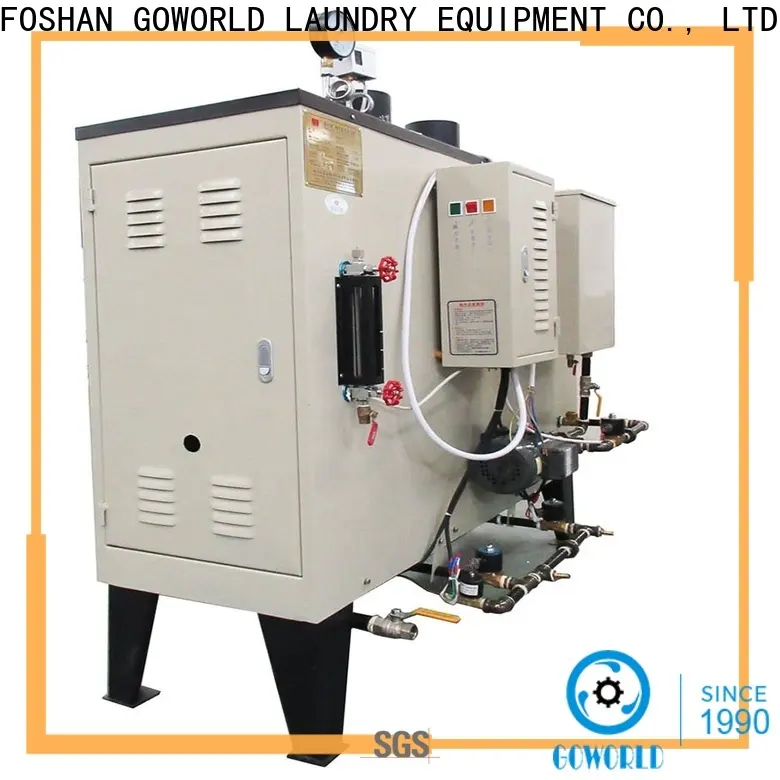

MODEL A: automatic gas-type steam boiler Parameter:
Name | FL-YPB-20 | FL-YPB-30 | FL-YPB-50 | FL-YPB-100 | |
Model | LSS0.02-0.7-Q | LSS0.03-0.7-Q | LSS0.05-0.7-Q | LSS0.1-0.7-Q | |
Pressure | 0.7Mpa | ||||
Steam Output | 20kg/h | 30kg/h | 50kg/h | 100kg/h | |
Fuel Used | Liquid petroleum gas | ||||
Max.consume | 1.2kg/h | 1.5kg/h | 2.2kg/h | 3.9kg/h | |
Weight | 153kg | 168kg | 240kg | 435kg | |
Dimension | Length | 750mm | 750mm | 800mm | 1370mm |
Width | 600mm | 600mm | 600mm | 400mm | |
Height | 1200mm | 1170mm | 1140mm | 1380mm | |
MODEL B: diesel-type steam boiler Parameter:
Model | Pressure(Mpa) | Oil consumption(kg) | Steam output(kg/h) | Dimension(mm) | Weight |
LWS0.04-0.7-Y | 0.7 | 2.8 | 40 | 730*735*1430 | 273 |
LWS0.05-0.7-Y | 0.7 | 3.4 | 50 | 730*735*1471 | 282 |
LWS0.06-0.7-Y | 0.7 | 4.1 | 60 | 770*765*1540 | 309 |
LWS0.08-0.7-Y | 0.7 | 5.5 | 80 | 775*760*1720 | 322 |
LWS0.10-0.8-Y | 0.8 | 7 | 100 | 882*880*1740 | 446 |
LWS0.15-0.8-Y | 0.8 | 11 | 150 | 950*950*1980 | 575 |
LWS0.20-0.8--Y | 0.8 | 14 | 200 | 1035*1030*2100 | 677 |
MODEL C: electric-type steam boiler Parameter:
Model | output-kw | Specified steam-kg/h | Specified steam pressure-Mpa | Specified steam temperature-°C | voltage-V | Frequency -Hz | Dimension-mm |
LND0.004-0.7 | 3 | 4 | 0.7 | 169.6 | 220 | 50 | 500*310*660 |
LND-0.005-0.7 | 4 | 5 | 0.7 | 169.6 | 220 | 50 | 500*310*660 |
LND0.008-0.7 | 6 | 8 | 0.7 | 169.6 | 220/380 | 50 | 500*310*660 |
LND0.012-0.7 | 9 | 12 | 0.7 | 169.6 | 380 | 50 | 520*310*780 |
Welcome to visit our factory and have a deeply talk! Looking forward to hearing from you,thanks.
