Product Details
GOWORLD LAUNDRY EQUIPMENT's laundry equipment is exquisite in details.GOWORLD LAUNDRY EQUIPMENT makes a breakthrough in the traditional design concept of electrical appliances. We add modern technology and trendy elements in the design process of laundry equipment. The products are deeply favored by consumers for its elegant, simple yet stylish look. We lead the new fashion trend of electrical appliance market.GOWORLD LAUNDRY EQUIPMENT carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce laundry equipment which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.
Enterprise Strength
-
GOWORLD LAUNDRY EQUIPMENT has a professional team with excellent business skills and strong comprehensive quality. We strive to achieve rapid development by giving full play to each member's potential.
-
GOWORLD LAUNDRY EQUIPMENT is praised and favored by customers for high-quality products and professional after-sales services.
-
Under the enterprise spirit of 'united, hard-working, truth-seeking and innovative', GOWORLD LAUNDRY EQUIPMENT constantly gained self-breakthrough during development and achieved the goal to be the forerunner in the industry.
-
After years of development, GOWORLD LAUNDRY EQUIPMENT gathers rich excellent resources and draws on the advanced production concept of peers. We construct a unique production mode of electric appliance. Now we are unanimously recognized in the electric appliance industry.
-
GOWORLD LAUNDRY EQUIPMENT's products are not only sold well in China but also exported to Southeast Asia, Africa, and other foreign countries. They are highly praised by local consumers.
Company Advantages1. dry cleaning machine are offered backed by our rich industry expertise in this field. The free-standing design allows it to be installed on any floor on any building level
2. The product is widely recommended and treasured owing to their superior quality and lasting performance. Its design ensures the best defense against the spread of cross infections and harmful microorganisms
3. This product is widely accepted in the entire national market. It is designed to be serviced, which is much more cost effective than replacement
Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E |
Washing Capacity | kg | 8 | 10 | 12 | 14 |
Cylinder Capacity | L | 140 | 160 | 200 | 240 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 |
Capacity | #3 | L | 112 | 112 | 112 | 129 |
Still Tank Capacity | L | 150 | 150 | 150 | 150 |
Filter Area | m2 | 2.8 | 2.8 | 3 | 3 |
Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 |
Electric | Still | kw | 6 | 6 | 6 | 6 |
|
|
|
|
|
|
|
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
Maximum Steam | kg/h | 30 | 32 | 34 | 36 |
Consumption |
|
|
|
|
|
Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2040 |
Weight | kg | 800 | 850 | 900 | 950 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.

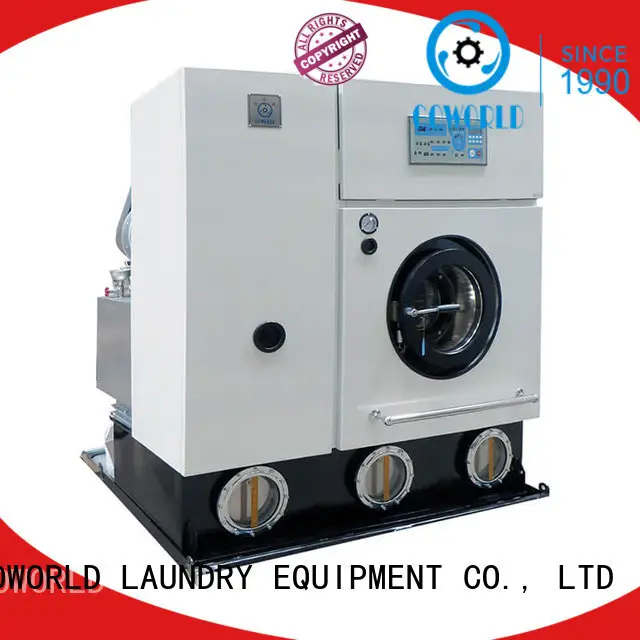

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has successfully established its own reputation in dry cleaning machine sales.
2. In the past years, FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has cultivated its own product R&D capabilities.
3. Professional after-sales service and the GOWORLD branded dry cleaning equipment will satisfy you. Inquire online!
