Enterprise Strength
-
GOWORLD LAUNDRY EQUIPMENT runs the business in good faith and strives to provide professional services for customers.
Company Advantages1. The circuit board of GOWORLD dry cleaning washing machine is designed by adopting different technologies. It is carried out with the help of CAD and CAM software.
2. We set a higher and higher standard for the quality of this product.
3. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD's great strength has come from the cultivation of its brands.
Model | Unit | TC4020S/E | TC4025S/E | TC4028S/E | TC4032S/E | TC4036S/E | TC4040S/E |
Washing Capacity | kg | 10 | 12 | 14 | 16 | 18 | 20 |
Cylinder Capacity | L | 160 | 200 | 240 | 280 | 320 | 360 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 129 | 164 | 164 | 164 |
| #2 | L | 127 | 127 | 147 | 177 | 177 | 177 |
Capacity | #3 | L | 112 | 112 | 129 | 180 | 180 | 180 |
Still Tank Capacity | L | 150 | 150 | 150 | 205 | 205 | 205 |
Filter Area | m2 | 2.8 | 3 | 3 | 3 | 3 | 3 |
Total Motor Power | kw | 4 | 4.5 | 4.5 | 6 | 6 | 6 |
Electric | Still | kw | 6 | 6 | 6 | 6 | 6 | 6 |
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 8.1 | 8.1 | 8.1 |
Maximum Steam | kg/h | 32 | 34 | 36 | 40 | 42 | 44 |
Consumption |
|
|
|
|
|
|
|
Maximum Water Consumption | kg/h | 450 | 500 | 550 | 580 | 600 | 620 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1940 | 1940 | 1940 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2200 | 2200 | 2200 |
Weight | kg | 850 | 900 | 950 | 1100 | 1150 | 1200 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Lots of recruitment of nylon filter.
◆ Full-closed refrigerated recovery system.
◆ Solvent: Polyethylene.can be cycle to use.
◆ Electric or steam heating can be choose by customer.
◆ Three kinds of solvent tanks to meet demand for colored clothes.

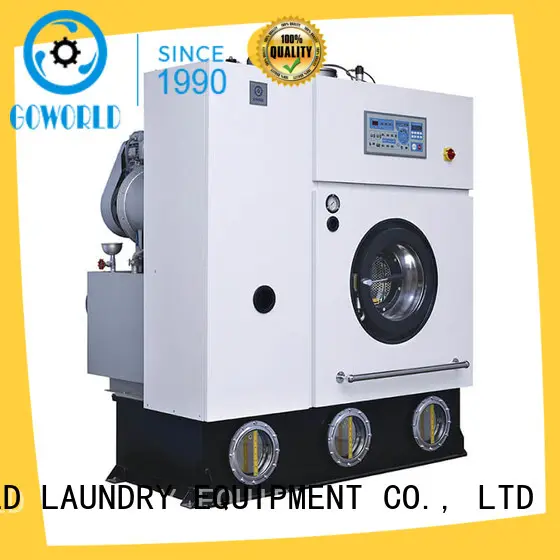

10kg-20kg hotel clothes dry cleaner environment friendly full closed machine is through the collection of the organic solvents,filtered,and the condensate recovery when dry cleaning,implements the dry cleaning solution recycling,save the cost of solvent and has reached the requirement of environmental protection,have the characteristics of carbon basket system and full-closed refrigerated recovery system,no need to add diatom,so it’s no pollution to the air, no harm to human, keep the room fresh.it’s especially suitable for hotel,laundry shop,textile industries,fire brigade etc.
NO.1 / 10kg-20kg hotel clothes dry cleaner full closed door lock system
Full-closed door lock system,Pneumatically controlled door lock switch, the outside can not be opened during work operation, preventing dry cleaning oil leakage.
NO.2 / 10kg-20kg hotel clothes dry cleaner button trap
Button trap,Stainless steel component parts to ensure stable running .The working solvent is coarsely filtered to remove impurities such as buttons and coins that are dropped during the washing process.
NO.3 / 10kg-20kg hotel clothes dry cleaner lint trap
Lint trap,The door is equipped with a safety switch,When the door is opened, the computer alarms, the machine is self-locking and cannot work.
NO.4 / 10kg-20kg hotel clothes dry cleaner consists systems
Hotel clothes dry cleaner consists systems:washing system,filtration system,distillation system,drying and recycling system,solvent storage tank,pump,lint trap and button trap.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has acquired a larger customer base with its reputation.
2. Over the past long years, we have worked with many international brands and retailers to manufacture products. Those experience enabled us to understand customers thoroughly and how to provide services with added values.
3. Being a responsible corporate citizen is an integral part of sustainable business growth and long-term success for us. We have been involved in various projects such as Education Sponsorship for Underprivileged. We strive to achieve a better global environment, fulfil our ethical and social responsibilities, and work hard to exceed the expectations of our customers and employees. We have created an environmental policy for everyone to adhere to and constantly work with our clients to put sustainability into practice.
