Model | W100S | W050S | W050E | ||
Capacity | kg | 100 | 50 | 50 | |
Drum size(Φ×L) | mm | Φ1100x1050 | Φ900x860 | Φ900x860 | |
Washing speed | r/min | 33 | 36 | 36 | |
Extracting speed | r/min | 670 | 750 | 750 | |
Motor power/ Heat power | kw | 15 | 7.5 | 7.5/36 | |
Weight | Kg | 2600 | 1900 | 1900 | |
External Size | Length | mm | 2150 | 1920 | 1920 |
Width | mm | 1650 | 1400 | 1400 | |
Height | mm | 2050 | 1850 | 1850 |
Workshop Products
◆ GOWORLD series barrier washing machine are protected of patent and CE.
◆ Well built, economical to operate, easy maintenance and of good performance.
◆ To meet the hospital washing level need, the barrier washing machine have divides the drum into two separate independent areas.
Workshop Products

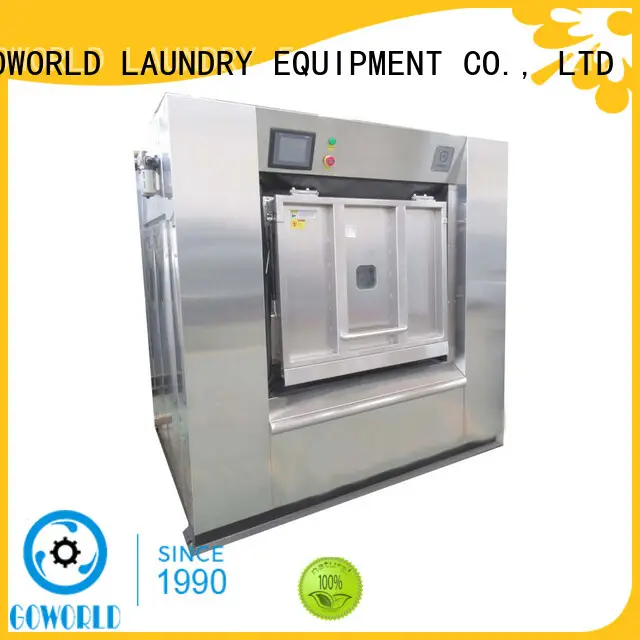

50kg-100kg barrier washing machine for non-dust industries and hospitals solution machine is a series of industries and hospitals solution machine under the GOWORLD brand. It’s has the characteristics of double door and can divides the “clean area” and “non-clean area”, barrier the pollutant and non-pollutant clothes, it’s especially suitable for food laundry,medical laundry non-dust industries and hospitals laundry,supply the solution for washed clothes can be guard against cross infection,the uses of suspension structure and strong spring make the machine reduce shock,long time uses.all the products are protected by CE certifications.
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
TONG YANG 120kg fully automatic industrial washing machine
Model | XTQ-15H | XTQ-20H | XTQ-30H | XTQ-50H | XTQ-70H | XTQ-100H | |||||
Rated capacity (kg) | 10-15kg | 15-20kg | 20-30kg | 35-50kg | 50-70kg | 70-100kg | |||||
Motor power (kw) | 2.2kw | 2.2kw | 4.0kw | 5.5kw | 7.5kw | 7.5kw | |||||
Electrical power(kw) | 12kw | 15kw | 24kw | 36kw | - | - | |||||
Roller dimension (mm) | 650mm | 673mm | 902mm | 1060mm | 1200mm | 1200mm | |||||
Roller deep (mm) | 450mm | 550mm | 500mm | 605mm | 626mm | 815mm | |||||
Roller volume | 149Lit | 195Lit | 320Lit | 504Lit | 708Lit | 920Lit | |||||
Average speed (r/min) | 90r/min | 90r/min | 72r/min | 75r/min | 70r/min | 65r/min | |||||
Washing speed (r/min) | 50r/min | 45r/min | 36r/min | 35r/min | 33r/min | 31r/min | |||||
Middle dewater speed (r/min) | 450r/min | 400r/min | 420r/min | 380r/min | 350r/min | 310r/min | |||||
High dewater speed (r/min) | 890r/min | 820r/min | 780r/min | 760r/min | 680r/min | 680r/min | |||||
Steam pipe | 3/4" | 3/4' ' | 1" | 1" | 1" | 1" | |||||
Cold water pipe | 3/4" | 3/4' ' | 3/2" | 3/2" | 3/2" | 3/2" | |||||
Hot water pipe | 3/4" | 3/4' ' | 3/2" | 3/2" | 3/2" | 3/2" | |||||
Drain valve | φ 70mm | φ 70mm | φ 140mm | φ 140mm | φ 140mm | φ 140mm | |||||
Power supply | Standard: 380+N-3PH-50HZ | ||||||||||
Overall size (length*width*height) mm | 1010*1110 *1510 | 1100*1020 *1500 | 1410*1430 *1760 | 1650*1750 *1900 | 1850*1800 *2300 | 1850*2000 *2300 | |||||
Weight (kg) weight | 950kg | 980kg | 1900kg | 2600kg | 2800kg | 3130kg |
Main features:
1. laundry washer extractor Fully automatic, microcomputer-controlled.
2. Industrial washer extractor has high quality 304'' stainless steel, good appearance, long life.
3. Microprocessor,freely programmable,5 standard programmers, 25 possible programmers.
4. Full suspension shock sructure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. laundry washer extractor has high quality inverter system, easily realize washing and dehydration frequency steep adjusting.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system.
10, Multiple sealing system, oil sealing , water sealing, stainless steel sealing.
11. With CE and ISO9001 certificates.
Hospital/Cleanroom laundry washing machine Barrier Washer Extractor
1. Fully automatic, microcomputer-controller,freely programmable,30 possible programs , operator could set flexible.
2. High quality stainless steel, good appearance, long life.
3. Full suspension shock structure,low shake, low noise,combination of shock absorbance and springs for maximum absorption, need no excessive foundations.
4. Imported bearing, precise and durable.
5. Fixed screws support for long-distance transportation, avoid shaking damage during transit.
6. High quality inverted system, easily realize washing and extracting frequency step less adjusting.
7, Multiple sealing system, oil sealing , water sealing, stainless steel sealing.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system, reduce fatigue, misuse and the risk.
Model | Unit | XGQ-30 | XGQ-50 | XGQ-70 | XGQ-100 |
Rated Capacity | kg | 30 | 50 | 70 | 100 |
Drum Diameter | mm | 902 | 1080 | 1200 | 1240 |
Drum Depth | mm | 500 | 600 | 626 | 840 |
Washing | rpm | 36 | 36 | 34 | 32 |
Low Extract | rpm | 375 | 345 | 325 | 325 |
High Extract | rpm | 760 | 700 | 660 | 660 |
G-Force | G | 300 | 300 | 300 | 300 |
Heating | Electric Heating | ||||
Electric Heating Power | kw | 20 | 20 | 40 | 40 |
Voltage | V/P/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
Motor power | kw | 4 | 5.5 | 7.5 | 7.5 |
Weight | kg | 1500 | 2200 | 2500 |
