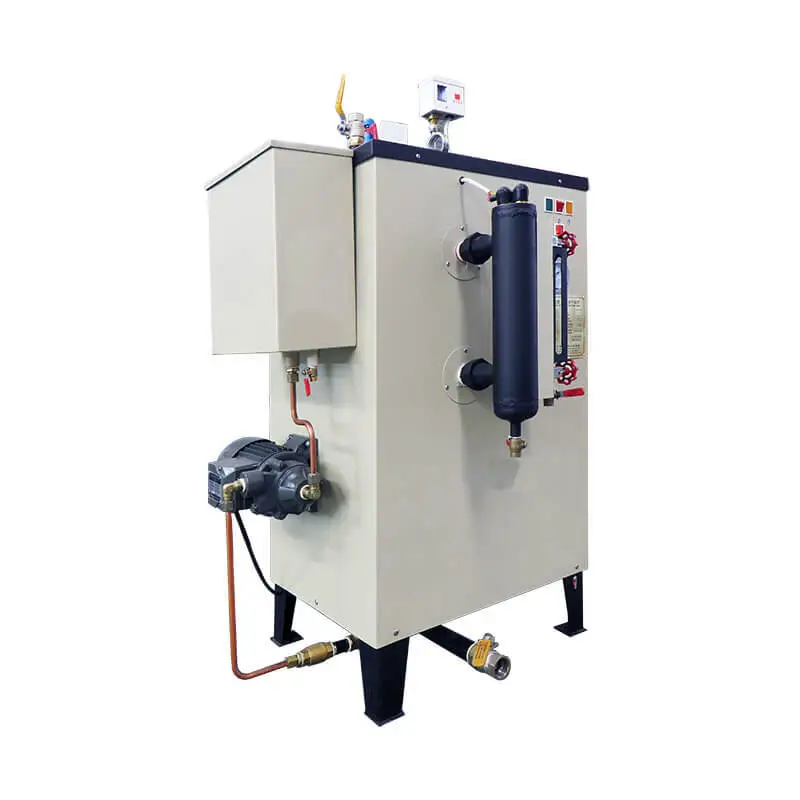

Laundry steam boiler electric type laundry steam generator
5.0
Machine Type:
Laundry steam generator
Place of Origin:
Guangdong,China
Lead Time:
25-30working days after TT deposit
Suitable For:
Commercial laundromat,textile industrial,fire brigade,pharmaceutical
Machine Voltage:
380V
Heat Way:
Electric heating
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
GOWORLD
| Model | Output | Specified steam output | Specified steam pressure | Specified steam temperature | Voltage | Frequency | Dimension |
| LND0.004-0.7 | 3kw | 4kg/h | 0.7 Mpa | 170oC | 220V | 50Hz | 590x410x730 |
| LND0.005-0.7 | 4kw | 5kg/h | 0.7 Mpa | 170oC | 220V | 50Hz | 590x410x730 |
| LND0.008-0.7 | 6kw | 8kg/h | 0.7 Mpa | 170oC | 220V/380V | 50Hz | 590x410x750 |
| LND0.012-0.7 | 9kw | 12kg/h | 0.7 Mpa | 170oC | 380V | 50Hz | 620x430x780 |
| LND0.016-0.7 | 12kw | 16kg/h | 0.7 Mpa | 170oC | 380V | 50Hz | 620x430x780 |
| LND0.024-0.7 | 18kw | 24kg/h | 0.7 Mpa | 170oC | 380V | 50Hz | 870x520x1020 |
| LND0.032-0.7 | 24kw | 32kg/h | 0.7 Mpa | 170oC | 380V | 50Hz | 870x520x1020 |
| LND0.005-0.7 | 36kw | 50kg/h | 0.7 Mpa | 170oC | 380V | 50Hz | 700x450x1210 |
| LND0.065-0.7 | 48kw | 65kg/h | 0.7 Mpa | 170oC | 380V | 50Hz | 700x450x1210 |
Product Details
Laundry steam boiler electric type laundry steam generator have a unique of built-in steam-water separator solved a problem of steam with water which brought by similar products.all internal piping and boiler control system has been connected before delivering the factory.we supply 4kg/h to 65kg/h steam output model to choose,suitable for small laundry room or hotel to use.
NO.1 / Laundry steam boiler electric type laundry steam generator electric button
Electric button,adopt safety electricity wiring.it's safe and easy to operate.
NO.2 / Laundry steam boiler electric type laundry steam generator electric component
Electric component,the connections of the electric parts are safe and resistant to elevated temperatures.
NO.3 / Laundry steam boiler electric type laundry steam generator the main components of the boiler
The main components of the boiler, such as the furnace, the drum, the burner, the water wall,the economizer,the frame and the furnace wall, called the boiler body.
NO.4 / Laundry steam boiler electric type laundry steam generator Boiler main parameters
Boiler main parameters, including boiler capacity, steam pressure, steam temperature, feed water temperature, etc.
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
