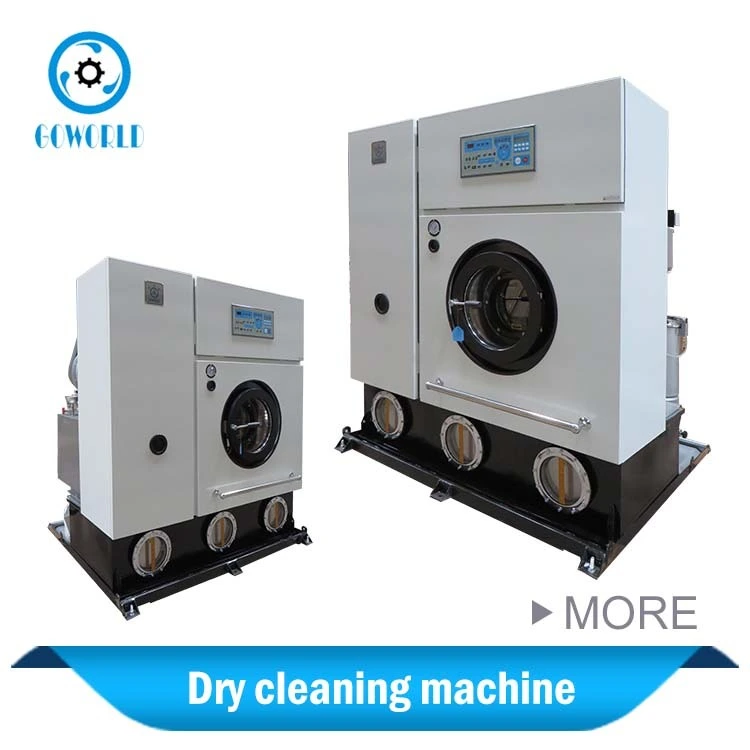

laundry shop dry cleaning machine-laundromat machine
Laundry shop Dry Cleaning Machine-Laundromat Machine :
parameters:
| Item | Unit | TC2015 S/E | TC3015 S/E | TC3020 S/E | TC3025 S/E | TC3028 S/E | TC4032 S/E | TC4036 S/E | TC4040 S/E | |
| Capacity | kg | 8 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
| Volume | L | 120 | 140 | 160 | 200 | 240 | 280 | 320 | 360 | |
| Washing speed | r/min | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | |
| Extracting speed | r/min | 370 | 370 | 370 | 370 | 370 | 370 | 370 | 370 | |
| Distil volume | L | 100 | 112 | 112 | 112 | 129 | 164 | 164 | 164 | |
| 127 | 127 | 127 | 147 | 177 | 177 | 177 | ||||
| 112 | 112 | 112 | 129 | 180 | 180 | 180 | ||||
| Filter Area | m2 | 2.4 | 150 | 150 | 150 | 150 | 205 | 205 | 205 | |
| Motor power | kw | 4 | 2.8 | 2.8 | 3 | 3 | 3 | 3 | 3 | |
| Electric heating power | Distil | kw | / | 4 | 4 | 4.5 | 4.5 | 6 | 6 | 6 |
| Dry | kw | / | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 6.75 | 6.75 | 6.75 | 6.75 | 8.1 | 8.1 | 8.1 | ||||
| Steam consumption | kg/h | 30 | 30 | 32 | 34 | 36 | 40 | 42 | 44 | |
| Water consumption | kg/h | 400 | 400 | 450 | 500 | 550 | 580 | 600 | 620 | |
| Size | H | mm | Size | 2040 | 2040 | 2040 | 2040 | 2200 | 2200 | 2200 |
| W | mm | 1490 | 1690 | 1690 | 1690 | 1690 | 1940 | 1940 | 1940 | |
| T | mm | 1100 | 1150 | 1150 | 1150 | 1250 | 1300 | 1300 | 1300 | |
| Weight | kg | 650 | 800 | 850 | 900 | 950 | 1100 | 1150 | 1200 | |
Remark
1.Steam pressure 4-6 kg/cm2 3.Power Source 380V/3PH/50Hz
2.Cooling Water Pressure 1.5-2 kg/cm2 4.S-Steam type E-Electric type
Laundry shop Dry Cleaning Machine-Laundromat Machine :
MODEL A : TC30 TC40 PERC DRY-CLEANING MACHINE
- Solvent: tetrachloroethylene.
- Being durable by adopting stainless steel materials.
- Full computer control programs can finish all the washing processes by will.
- With muti-zone temperature & pressure measuring device, running is safe and reliable.
- Three kinds of solvent tanks can meet kinds washing demand for colored clothes.
- Various colored faceplate to satisfy customer’s different requirements.
MODEL B:HC60 PETROLEUM LAUNDRY DRY CLEANER
1. Solvent: D-40 hydrocarbon.
2. Adopt full-closed refrigerated recovery system to protect the environment and reduce energy consumption.
3. Lots of recruitment of Nylon filter can achieve high cleanliness.
4. Adopt international famous brand critical component parts to ensure stable running.
Dry Cleaning Machine---Various Laundry Dry Cleaner Choose:
