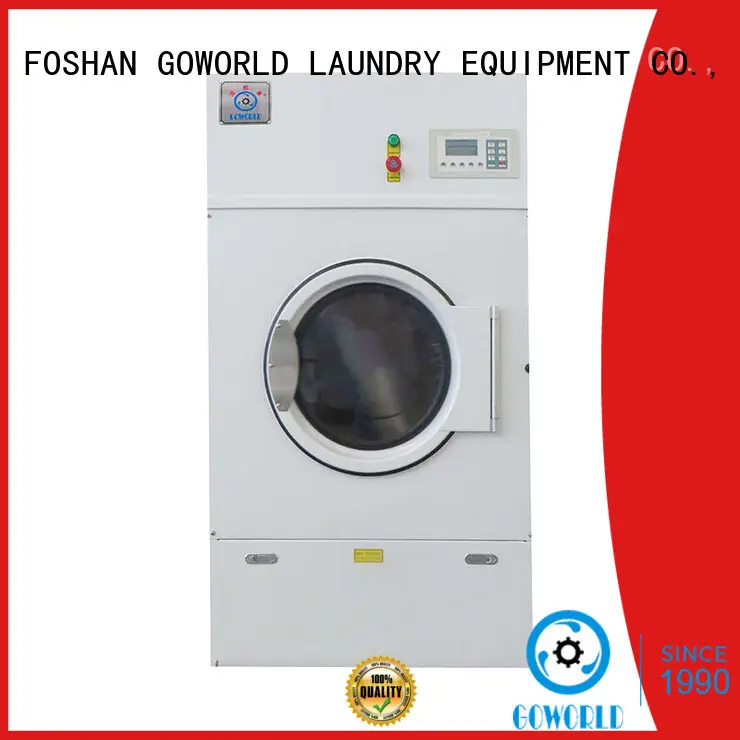

high quality industrial tumble dryer equipment simple installation for hospital
Machine Type:
Commercial drying machine:LPG gas type heating
Place of Origin:
Guangdong,China
Certificate:
CE & ISO &SGS passed
Lead Time:
15-20working days after TT deposit
Suitable For:
Garments factory towels drying,laundering & dyeing tablecloths drying,etc.
Capacity:
From 8kg,10kg,12kg,15kg,25kg,35kg,50kg,80kg,100kg to 150kg meet different laundry need
Machine Voltage:
380V,415V,440V,480V,220V,240V
Application Scope
GOWORLD LAUNDRY EQUIPMENT's laundry equipment is widely used in various industries and fields.GOWORLD LAUNDRY EQUIPMENT could customize comprehensive and efficient solutions according to customers' different needs.
Enterprise Strength
- GOWORLD LAUNDRY EQUIPMENT has a unique quality management system for production management. At the same time, our large after-sales service team can improve the quality of the products by investigating the opinions and feedback of customers.
1. The design of GOWORLD hotel cloth dryer delivers incomparable concepts.
2. The product is wear resistant. The finish on its surface is high quality and can stand up to everyday wear and tear.
3. This product has great strength. It has the ability to withstand mechanical shocks from suddenly applied forces or an abrupt change in motion produced by handling, transportation or field operation.
4. The use of this product helps achieve large-scale production and can reduce costs to levels never dreamt of before.
5. People will pretty like this product as they can find that it can hold its color for several years before it starts to fade.
Product Specifications
GOWORLD
| Model | GQZ-150Q | GQZ -100Q | GQZ-80Q | GQZ-50Q | GQZ-35Q | GQZ -25Q | GQZ -15Q |
| kg | 150 | 100 | 80 | 50 | 35 | 25 | 15 |
| mm | Φ1750×1200 | Φ1460×1200 | Φ1300×1200 | Φ1100×1060 | Φ990×930 | Φ915×770 | Φ760×680 |
| kw | 5.2 | 3 | 2.7 | 2.2 | 2.2 | 1.5 | 0.92 |
| kg/h | 4.95 | 3.45 | 2.7 | 2.1 | 1.8 | 1.5 | 1.05 |
| kg | 1300 | 800 | 600 | 500 | 450 | 350 | 250 |
| mm | 1830 | 1470 | 1305 | 1200 | 1100 | 970 | 820 |
| mm | 1760 | 1740 | 1650 | 1600 | 1480 | 1280 | 1160 |
| mm | 2800 | 2420 | 2340 | 2200 | 2050 | 1900 | 1500 |
| Model | Unit | D12Q | D10Q | D08Q | |
| Capacity | kg | 12 | 10 | 8 | |
| Drum size(Φ×L) | mm | Φ680x680 | Φ680x570 | Φ680x450 | |
| Motor power | kw | 0.74 | 0.74 | 0.74 | |
| LPG Consumption | kg/h | (Q)0.9 | (Q)0.75 | (Q)0.6 | |
| Weight | kg | 190 | 170 | 150 | |
| External Size | Length | mm | 740 | 740 | 740 |
| Width | mm | 1100 | 990 | 870 | |
| Height | mm | 1320 | 1320 | 1320 | |
Workshop Products
◆ 8kg to 150kg LPG gas heat commercial clothes drying machine.
◆ Equipped gated security linkage will stop automatic when loading door open in working process.
◆ Equipped with independent stop switch can quickly cut off power supply when the equipment in abnormal situation to ensure safety.
Product Details
8kg-150kg LPG gas heating commercial clothes towels and tablecloths drying machine is a series of commercial drying machine under the GOWORLD brand.It has the characteristics of drying machine use LPG gas as source,LPG gas is more economic than electric in some country,so it can low down the machine running cost but temperature still rising fast,it’s especially suitable for troop clothes drying,fire brigade clothes drying,pharmaceutical towels drying,garments factory towels drying,laundering & dyeing tablecloths drying,etc.all the drying machine models have protect by CE certifications.
NO.1 / Automatic computer contro
Automatic computer control,the working condition can be displayed on the screen directly.
NO.2 / Frequency inverter
Frequency inverter, conversion and microelectronic technology, controlling the power of AC motor to save the working power for machine.
NO.3 / Dust collecting
Dust collecting, have the featuring of beautiful appearance, long service life and thorough removal of impurities.
NO.4 / Rubber
Rubber,can support temperature requirements of -5°-+150°C, can meet the oil resistance, steam resistance, high strength, flame retardant and conductive silicone rubber.
NO.5 / Big air exhaust
Big air exhaust design ,it to put the extra heat outside,protect the machine away from over-temperature, It is necessary to avoid the stoppage.
NO.6 / LPG gas valve
The LPG gas system can make the pressure does not exceed the allowable value. There are electric heating,LPG gas heating,natural gas heating and steam heat for industrial tumble dryer.
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features
1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is one of the most professional industrial tumble dryer R&D and operation teams in China.
2. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is able to keep operational costs at a minimum and ensure all of resources are being maximized.
3. Our culture of gas tumble dryer enables us to look forward to working with customers to create a brilliant future together. Welcome to visit our factory! FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD will never stop improving quality and service until our customers become satisfied. Welcome to visit our factory! We runs the business according to the service tenet of electric tumble dryer . Welcome to visit our factory! FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is firmly committed to honesty. To choose us is to choose honesty. Welcome to visit our factory!
