Product Specifications
Mode | XGQ-150F | XGQ-120F | XGQ-100F | XGQ-80F | XGQ-50F(FD) | XGQ-35F(FD) | XGQ-25F(FD) | XGQ-15F(FD) | ||
Capacity | kg | 150 | 120 | 100 | 80 | 50 | 35 | 25 | 15 | |
Drum size(Φ×L) | mm | Φ1320×1100 | Φ1220×1030 | Φ1220×860 | Φ1220×690 | Φ955×700 | Φ955×490 | Φ750×540 | Φ750×340 | |
Washing speed | r/min | 32 | 33 | 33 | 33 | 36 | 36 | 38 | 38 | |
Extract speed | r/min | 660 | 670 | 670 | 670 | 750 | 750 | 850 | 850 | |
Motor power/ Heat power | kw | 22 | 18.5 | 15 | 11 | 7.5/36 | 5.5/27 | 3/21 | 2.2/15 | |
Weight | kg | 4100 | 3500 | 3150 | 2850 | 1700 | 1500 | 1000 | 700 | |
External Size | Length | mm | 1950 | 1850 | 1850 | 1850 | 1440 | 1440 | 1220 | 1220 |
Width | mm | 2120 | 2040 | 1840 | 1670 | 1530 | 1350 | 1270 | 1140 | |
Height | mm | 2030 | 2030 | 1700 | 1700 | 1540 | 1540 | 2030 | 2060 |
Workshop Products
◆ Japanese V-belts, run smoothly.
◆ Delta inverter.
◆ Frequency controlled motor.
◆ Japanese bearings.
◆ Europe Schneider electric parts. safety and reliable.
◆ #304 Stainless steel cabinet and drum.
◆ Imported Japanese seal makes no leakage.
◆ USB port microprocessor enables to reprogram freely&easily by PC.
◆ Easy access to all parts for maintenance.
◆ Large drain valves.
◆ Each drum tested by dynamic balance machine.
◆ Manual or automatic detergent supply system can be order to choose.
◆ Electric heating ,steam heating can be order to choose.
Products Details

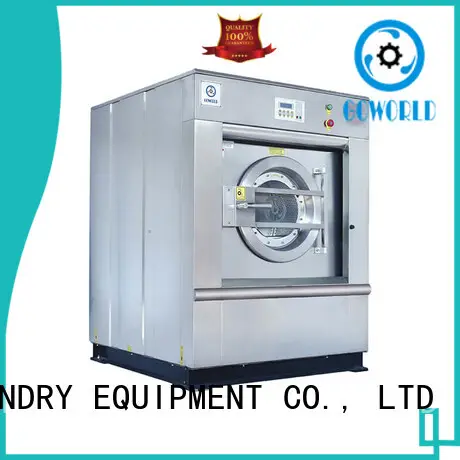

The 15kg-150kg automatic soft mount washer extractor is a series of laundry equipment under the GOWORLD brand.It has the characteristics of suspension structure and long-term continuous operation,The whole washer extractor tank system is installed suspended on the spring and damping devices,when the machine washer and water extracting, shock absorption is up to 95%,and without foundation required when using, it’s especially suitable for hotel laundry equipment,hospital laundry equipment,restaurants laundry equipment, and railway company laundry equipment etc. The use of high-powered motor and converter motor making this series of laundry equipment more stable and energy-saving, to meet the big capacity need for hotel and hospital,our soft mount type washer extractor can make the 150kg capacity,and all the model are protect by CE certifications..
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
TONG YANG 120kg fully automatic industrial washing machine
Model | XTQ-15H | XTQ-20H | XTQ-30H | XTQ-50H | XTQ-70H | XTQ-100H | |||||
Rated capacity (kg) | 10-15kg | 15-20kg | 20-30kg | 35-50kg | 50-70kg | 70-100kg | |||||
Motor power (kw) | 2.2kw | 2.2kw | 4.0kw | 5.5kw | 7.5kw | 7.5kw | |||||
Electrical power(kw) | 12kw | 15kw | 24kw | 36kw | - | - | |||||
Roller dimension (mm) | 650mm | 673mm | 902mm | 1060mm | 1200mm | 1200mm | |||||
Roller deep (mm) | 450mm | 550mm | 500mm | 605mm | 626mm | 815mm | |||||
Roller volume | 149Lit | 195Lit | 320Lit | 504Lit | 708Lit | 920Lit | |||||
Average speed (r/min) | 90r/min | 90r/min | 72r/min | 75r/min | 70r/min | 65r/min | |||||
Washing speed (r/min) | 50r/min | 45r/min | 36r/min | 35r/min | 33r/min | 31r/min | |||||
Middle dewater speed (r/min) | 450r/min | 400r/min | 420r/min | 380r/min | 350r/min | 310r/min | |||||
High dewater speed (r/min) | 890r/min | 820r/min | 780r/min | 760r/min | 680r/min | 680r/min | |||||
Steam pipe | 3/4" | 3/4' ' | 1" | 1" | 1" | 1" | |||||
Cold water pipe | 3/4" | 3/4' ' | 3/2" | 3/2" | 3/2" | 3/2" | |||||
Hot water pipe | 3/4" | 3/4' ' | 3/2" | 3/2" | 3/2" | 3/2" | |||||
Drain valve | φ 70mm | φ 70mm | φ 140mm | φ 140mm | φ 140mm | φ 140mm | |||||
Power supply | Standard: 380+N-3PH-50HZ | ||||||||||
Overall size (length*width*height) mm | 1010*1110 *1510 | 1100*1020 *1500 | 1410*1430 *1760 | 1650*1750 *1900 | 1850*1800 *2300 | 1850*2000 *2300 | |||||
Weight (kg) weight | 950kg | 980kg | 1900kg | 2600kg | 2800kg | 3130kg |
Main features:
1. laundry washer extractor Fully automatic, microcomputer-controlled.
2. Industrial washer extractor has high quality 304'' stainless steel, good appearance, long life.
3. Microprocessor,freely programmable,5 standard programmers, 25 possible programmers.
4. Full suspension shock sructure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. laundry washer extractor has high quality inverter system, easily realize washing and dehydration frequency steep adjusting.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system.
10, Multiple sealing system, oil sealing , water sealing, stainless steel sealing.
11. With CE and ISO9001 certificates.
