Application Scope
laundry equipment, one of GOWORLD LAUNDRY EQUIPMENT's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields.Guided by the actual needs of customers, GOWORLD LAUNDRY EQUIPMENT provides comprehensive, perfect and quality solutions based on the benefit of customers.
Product Comparison
laundry machine is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable. laundry machine is more competitive than other products in the same category, as shown in the following aspects.
Company Advantages1. GOWORLD roller ironing machine is carefully designed. It is an outcome with essential considerations such as spacing and insulation requirements, supply connections, component requirements, and performance test criteria.
2. The product keeps stable in rigorous conditions. It is not easily affected by external factors and runs normally even in extreme temperature or weather.
3. The product is safe to use. Its electromagnetic blowdown level is controlled to a low level and its electrical insulation are guaranteed effectively.
4. Having this product definitely speeds up the production time since no thinking is needed by it, there are better repeatability and less human error.
Model |
| YDK II - 3000 | YZKI I - 3000 | YZK I - 3000 |
Roller number | unit | 2 | 2 | 1 |
Roller width | mm | 3000 | 3000 | 3000 |
Roller diameter | mm | 800 | 800 | 800 |
Feeding speed | m/min | 5-22 | 5-22 | 3-13 |
Total power | kw | 73.5 | 1.5 | 1.5 |
Steam consumption | kg/h | / | 170 | 85 |
Weight | kg | 2100 | 2200 | 1200 |
External Size | Length | mm | 4060 | 4060 | 4060 |
Width | mm | 2570 | 2400 | 1500 |
Height | mm | 1360 | 1360 | 1360 |
Model |
| YQKI-3000 | YQKII-3000 | YQKIII-3000 |
Roller number | unit | 1 | 2 | 3 |
Roller width | mm | 3000 | 3000 | 3000 |
Roller diameter | mm | 800 | 800 | 800 |
Feeding speed | m/min | ≦7 | ≦15 | ≦20 |
Frequency power | kw | 1.5 | 2.2 | 4 |
Motor power | kw | 0.75 | 1.5 | 3 |
Gas pressure | mbar | 30 | 30 | 30 |
Weight | kg | 2000 | 2700 | 3400 |
External Size | Length | mm | 4060 | 4060 | 4060 |
Width | mm | 1700 | 2700 | 3600 |
Height | mm | 1350 | 1350 | 1350 |
◆ Roller heating,high temperature.
◆ Anti-curliness device can prevent the fabrics curling in the roller.
◆ Big touch screen controller to adjustable the inverter to control speed.

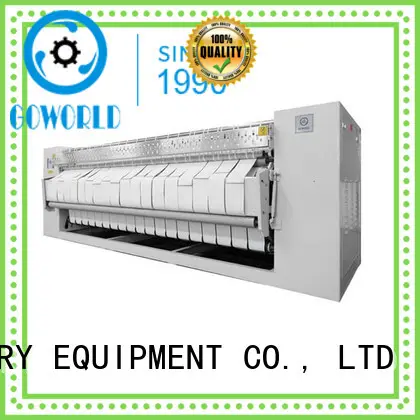

Roller style bed sheet flat ironer have steam heat,gas heat or electric heat as source to choose,steam heating roller can be order to single,double,three and four roll, and gas heating roller can be single,double,and three roll.electric heating roller can be order double roll.Roller style bed sheet flat ironer has the characteristics of roller length more than 3m,can be connected to folding machine directly,make the high ironing efficiency,the steam or gas with pressure is supplied through cylinder so that the flat ironed area can be heated evenly and effectively,machine with advanced converter motor and reducer,make big speed reducing rate and low noise, it’s especially suitable for hospital laundry,high grade hotel laundry, and textile laundry industries etc.
NO.1 / Bed sheet flat ironer large flat area
Large flat ironer area,meet the different material ironing need.
NO.2 / Bed sheet ironer heavy internal belt
Use the heavy internal belt,prevents from stretching and resistant to friction when machine running.
NO.3 / Flat ironer strong conveyor
Adopt steam union ,strong conveyor belt and chain to combination to drive.
NO.4 / Roller flat ironer full closed frame structure
Stainless steel roller ,full closed frame structure to ensure heating efficiency.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD precedes to provide top-ranking roller ironing machine in the marketplace.
2. In order to meet market's demands, FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD introduces the full-automatic modernized production line.
3. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is invited to supply high quality service for clients. Call! Our aim is to serve our customers with the most professional services and the best quality flat roll ironer . Call!
