Application Scope
laundry machine produced by GOWORLD LAUNDRY EQUIPMENT is mainly used in the following fields.GOWORLD LAUNDRY EQUIPMENT is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
Enterprise Strength
-
GOWORLD LAUNDRY EQUIPMENT pays great attention to customer demand and strives to provide professional and quality services for customers. We are highly recognized by customers and are well received in the industry.
Company Advantages1. The production of GOWORLD suit dry cleaning machine adopts a relatively advanced technical level in the industry.
2. This product can work stably under a range of voltage. It has been check for its reliability in different voltage conditions, such as input voltage, surge voltage or low voltage.
3. The product has received much fame from customers at home and abroad.
Model | Unit | TC4020S/E | TC4025S/E | TC4028S/E | TC4032S/E | TC4036S/E | TC4040S/E |
Washing Capacity | kg | 10 | 12 | 14 | 16 | 18 | 20 |
Cylinder Capacity | L | 160 | 200 | 240 | 280 | 320 | 360 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 129 | 164 | 164 | 164 |
| #2 | L | 127 | 127 | 147 | 177 | 177 | 177 |
Capacity | #3 | L | 112 | 112 | 129 | 180 | 180 | 180 |
Still Tank Capacity | L | 150 | 150 | 150 | 205 | 205 | 205 |
Filter Area | m2 | 2.8 | 3 | 3 | 3 | 3 | 3 |
Total Motor Power | kw | 4 | 4.5 | 4.5 | 6 | 6 | 6 |
Electric | Still | kw | 6 | 6 | 6 | 6 | 6 | 6 |
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 8.1 | 8.1 | 8.1 |
Maximum Steam | kg/h | 32 | 34 | 36 | 40 | 42 | 44 |
Consumption |
|
|
|
|
|
|
|
Maximum Water Consumption | kg/h | 450 | 500 | 550 | 580 | 600 | 620 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1940 | 1940 | 1940 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2200 | 2200 | 2200 |
Weight | kg | 850 | 900 | 950 | 1100 | 1150 | 1200 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Lots of recruitment of nylon filter.
◆ Full-closed refrigerated recovery system.
◆ Solvent: Polyethylene.can be cycle to use.
◆ Electric or steam heating can be choose by customer.
◆ Three kinds of solvent tanks to meet demand for colored clothes.

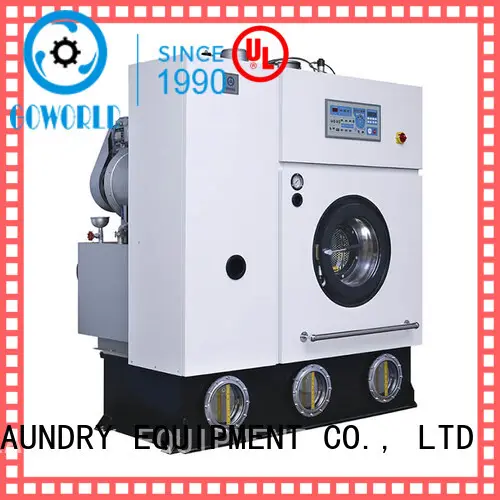

10kg-20kg hotel clothes dry cleaner environment friendly full closed machine is through the collection of the organic solvents,filtered,and the condensate recovery when dry cleaning,implements the dry cleaning solution recycling,save the cost of solvent and has reached the requirement of environmental protection,have the characteristics of carbon basket system and full-closed refrigerated recovery system,no need to add diatom,so it’s no pollution to the air, no harm to human, keep the room fresh.it’s especially suitable for hotel,laundry shop,textile industries,fire brigade etc.
NO.1 / 10kg-20kg hotel clothes dry cleaner full closed door lock system
Full-closed door lock system,Pneumatically controlled door lock switch, the outside can not be opened during work operation, preventing dry cleaning oil leakage.
NO.2 / 10kg-20kg hotel clothes dry cleaner button trap
Button trap,Stainless steel component parts to ensure stable running .The working solvent is coarsely filtered to remove impurities such as buttons and coins that are dropped during the washing process.
NO.3 / 10kg-20kg hotel clothes dry cleaner lint trap
Lint trap,The door is equipped with a safety switch,When the door is opened, the computer alarms, the machine is self-locking and cannot work.
NO.4 / 10kg-20kg hotel clothes dry cleaner consists systems
Hotel clothes dry cleaner consists systems:washing system,filtration system,distillation system,drying and recycling system,solvent storage tank,pump,lint trap and button trap.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. GOWORLD brand mainly focuses on producing dry cleaning washing machine.
2. We forge close partnerships with global customers. The constant and intimate interaction allows us to evaluate their needs better and to tailor products and services accordingly.
3. Our business goal is to improve our production efficiency by using new production technologies to reduce emissions and increase recycling. Considering the environmental and resources issues, we implement an efficient program to conserve water, minimize wastewater discharges to sewers or rivers, and fully utilize the resources. We are committed to promoting our sustainable development. We constantly enhance the environmental management system to meet the requirements of our environmental awareness. Our company practices an Environmental Management System (EMS) that focuses on the reduction of the company's environmental footprint. This system helps us have better production process control and utilization of resources.
