Product Comparison
GOWORLD LAUNDRY EQUIPMENT provides diversified choices for customers. laundry machine is available in a wide range of types and styles, in good quality and in reasonable price.After being improved greatly, GOWORLD LAUNDRY EQUIPMENT's laundry machine is more advantageous in the following aspects.
Company Advantages1. The body frame strength of dry cleaning equipment has been tested in the condition of commercial dry cleaning machine .
2. dry cleaning equipment is not only reliable in quality, but also easy to operate.
3. The trend toward increased productivity of FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has meant lower prices of its GOWORLD.
Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E |
Washing Capacity | kg | 8 | 10 | 12 | 14 |
Cylinder Capacity | L | 140 | 160 | 200 | 240 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 |
Capacity | #3 | L | 112 | 112 | 112 | 129 |
Still Tank Capacity | L | 150 | 150 | 150 | 150 |
Filter Area | m2 | 2.8 | 2.8 | 3 | 3 |
Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 |
Electric | Still | kw | 6 | 6 | 6 | 6 |
|
|
|
|
|
|
|
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
Maximum Steam | kg/h | 30 | 32 | 34 | 36 |
Consumption |
|
|
|
|
|
Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2040 |
Weight | kg | 800 | 850 | 900 | 950 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.

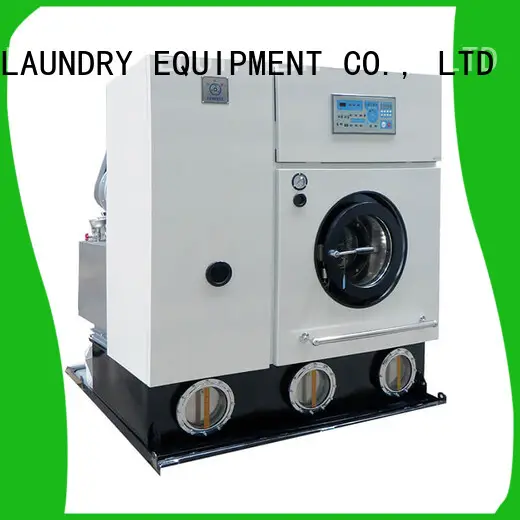

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is an expert in manufacturing dry cleaning equipment . We provide the best in class products and exceptional services.
2. Except advanced technology, GOWORLD also focuses on the professional experts introduction.
3. In the future, FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD will uphold the core of commercial dry cleaning machine . Please contact us! suit dry cleaning machine is the development tenet of FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD. Please contact us! In the future, FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD will focus on the innovative development of dry cleaning machine . Please contact us!
