Enterprise Strength
-
GOWORLD LAUNDRY EQUIPMENT attaches great importance to quality and sincere service. We provide one-stop services covering from pre-sales to in-sales and after sales.
Product Details
With the pursuit of excellence, GOWORLD LAUNDRY EQUIPMENT is committed to showing you unique craftsmanship in details.GOWORLD LAUNDRY EQUIPMENT has the ability to meet different needs. laundry equipment is available in multiple types and specifications. The quality is reliable and the price is reasonable.
Company Advantages1. The production of GOWORLD suit dry cleaning machine is strictly in accordance with international electrical principles. Its production follows the CE standard, GE standard, EMC standard, etc.
2. suit dry cleaning machine are the characteristics of dry cleaning washing machine.
3. Compared with normal dry cleaning washing machine, suit dry cleaning machine possess the combination of excellent performance and long service life.
4. With so many advantages, the product is considered to have a wide range of market applications.
Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E |
Washing Capacity | kg | 8 | 10 | 12 | 14 |
Cylinder Capacity | L | 140 | 160 | 200 | 240 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 |
Capacity | #3 | L | 112 | 112 | 112 | 129 |
Still Tank Capacity | L | 150 | 150 | 150 | 150 |
Filter Area | m2 | 2.8 | 2.8 | 3 | 3 |
Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 |
Electric | Still | kw | 6 | 6 | 6 | 6 |
|
|
|
|
|
|
|
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
Maximum Steam | kg/h | 30 | 32 | 34 | 36 |
Consumption |
|
|
|
|
|
Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2040 |
Weight | kg | 800 | 850 | 900 | 950 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.

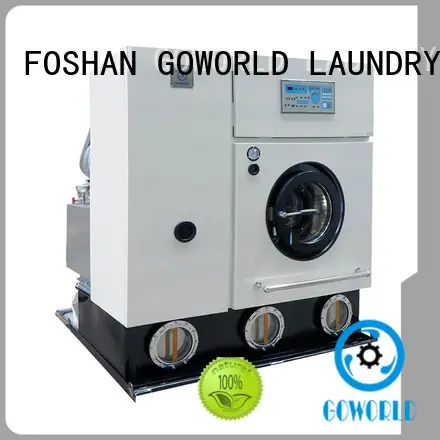

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. GOWORLD has a complete management system and a complete technical approach.
2. The progress of GOWORLD can not be achieved without the hard working employees and advanced dry cleaning washing machine.
3. We aim to create value and make a difference among our clients. We accomplish our mission by offering excellent services and flexibility to our customers. We are committed to developing a positive and respectable working environment that encourages collaboration and cooperation between employees. In this way, we can be an attractive company for talented and motivated. Our commitment to quality and our dedication to customer needs is what helped build our company, and it remains what drives us forward today and for generations to come. Our company practices sustainability hand in hand with the government. All of our business activities will conform to the laws and regulations stipulated by the government.
