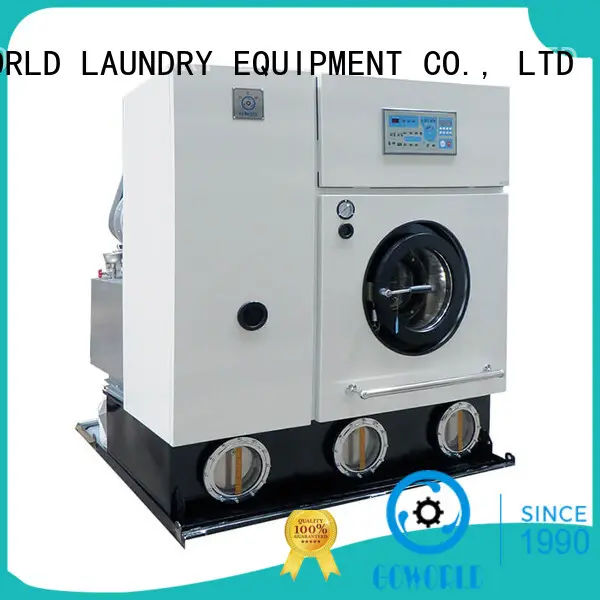

GOWORLD safe dry cleaning washing machine dry for railway company
Machine Type:
Dry cleaning machine model TC-3
Place of Origin:
Guangdong,China
Lead Time:
25-30working days after TT deposit
Suitable For:
Laundry shop,commercial laundromat,fire brigade,hotel,railway company
Machine Voltage:
380V,220V
Heat Way:
Electric heating,steam heating
Solvent:
Perchloroethylene
Enterprise Strength
- GOWORLD LAUNDRY EQUIPMENT is equipped with a professional service team. We are dedicated to providing customers with professional and efficient services.
1. The main structure of the dry cleaning washing machine is composed of suit dry cleaning machine which is applicable in many occasions.
2. The product has the advantage of fire resistance. It is able to provide a barrier to the spread of fire or perform structurally when exposed to fire.
3. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has the abundant dry cleaning washing machine research, development and manufacturing capacity.
4. All our warehouse staff are well-trained to move dry cleaning washing machine with great care during loading.
Product Specifications
GOWORLD
| Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E | |
| Washing Capacity | kg | 8 | 10 | 12 | 14 | |
| Cylinder Capacity | L | 140 | 160 | 200 | 240 | |
| Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | |
| Extract Speed | r/min | 370 | 370 | 370 | 370 | |
| Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 | |
| Capacity | #3 | L | 112 | 112 | 112 | 129 |
| Still Tank Capacity | L | 150 | 150 | 150 | 150 | |
| Filter Area | m2 | 2.8 | 2.8 | 3 | 3 | |
| Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 | |
| Electric | Still | kw | 6 | 6 | 6 | 6 |
| Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
| Maximum Steam | kg/h | 30 | 32 | 34 | 36 | |
| Consumption | ||||||
| Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 | |
| External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
| Thickness | mm | 1450 | 1450 | 1450 | 1450 | |
| Height | mm | 2040 | 2040 | 2040 | 2040 | |
| Weight | kg | 800 | 850 | 900 | 950 | |
| Remark | 1.S－ Steam type E－ Electric type | |||||
| 2.Steam Pressure：4-6KG/CM2; Cooling Water Pressure：1.5-2kg/cm2 | ||||||
| 3.Power Source：380V/3P/50HZ | ||||||
Workshop Products
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.
Product Details
8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features
1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is one of the most professional dry cleaning washing machine manufacturers in China.
2. In addition, FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has a first-class product R&D team with years of experience.
3. We are widely appraised for our professional service for dry cleaning equipment . Get an offer! FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is fully committed to supplying high quality dry cleaning machine with perfect service. Get an offer! FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has been exerting its full strength to serve customers with the highest quality. Get an offer! We devote to the aim of become an dry cleaning washing machine industry standard enterprise. Get an offer!
