Application Scope
laundry machine developed and produced by GOWORLD LAUNDRY EQUIPMENT is mainly applied to the following aspects.Guided by the actual needs of customers, GOWORLD LAUNDRY EQUIPMENT provides comprehensive, perfect and quality solutions based on the benefit of customers.
Company Advantages1. With the durable quality, dry cleaning equipment is greatly popular among customers.
2. The product has stable performance and long storage time.
3. The product has a long service life and long-lasting performance.
4. The product sells well in many countries and regions and will obtain a wider market share in the future.
Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E |
Washing Capacity | kg | 8 | 10 | 12 | 14 |
Cylinder Capacity | L | 140 | 160 | 200 | 240 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 |
Capacity | #3 | L | 112 | 112 | 112 | 129 |
Still Tank Capacity | L | 150 | 150 | 150 | 150 |
Filter Area | m2 | 2.8 | 2.8 | 3 | 3 |
Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 |
Electric | Still | kw | 6 | 6 | 6 | 6 |
|
|
|
|
|
|
|
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
Maximum Steam | kg/h | 30 | 32 | 34 | 36 |
Consumption |
|
|
|
|
|
Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2040 |
Weight | kg | 800 | 850 | 900 | 950 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.

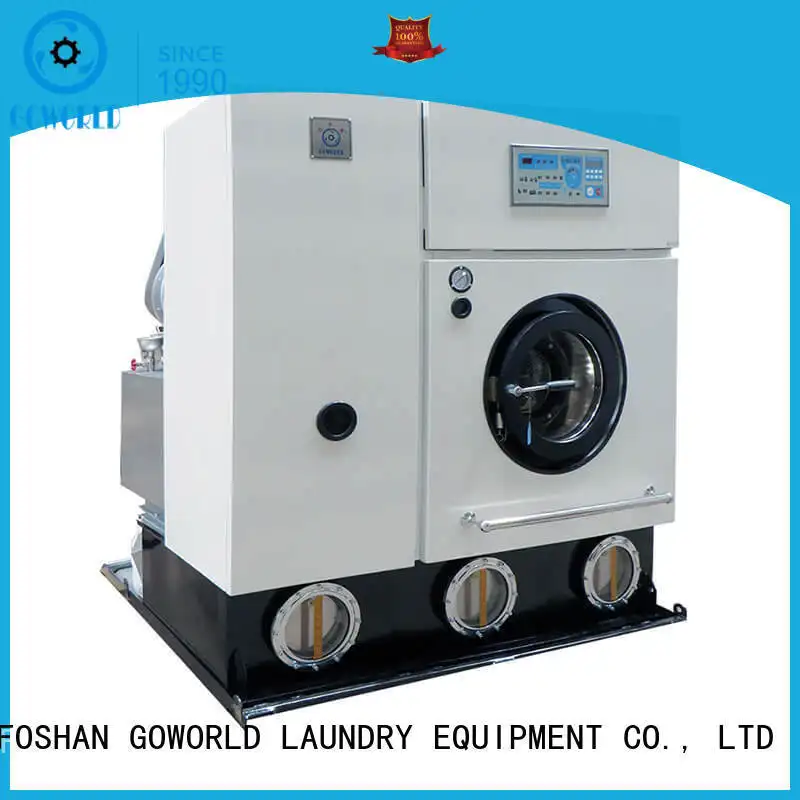

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. With many years of experience in creating dry cleaning equipment , GOWORLD deeply implement the pursuit of quality of life to meet different needs.
2. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD's quality management system provides strong organization guarantee to the quality management.
3. As a provider of social obligations, we see it as an obligation to effectively handle energy and resources and prevent environmental hazards in all of our regions. We aim to be problem-solvers and partners, not just producers. We listen to customers and make what they want us to make. Then we deliver quickly-- minus any bureaucratic fuss.
