Enterprise Strength
-
GOWORLD LAUNDRY EQUIPMENT has an experienced service team and a complete service system to provide quality and considerate services for customers.
Company Advantages1. GOWORLD industrial drying machine has passed a wide range of tests. It has been tested in terms of resistance to water penetration, fuel oil, fat, hot contact, discoloration, color transfer, and cracking.
2. The product has a long cycle life. The active materials feature strong stability and it is optimized in terms of the prevention of leaks.
3. The product is highly marketable in world markets and has high commercial value.
Model |
| GTQZ-150Q | GTQZ-100Q | GTQZ-80Q | GTQZ-50 | GTQZ-35Q | GTQZ-25Q | GTQZ-15Q |
Capacity | kg | 150 | 100 | 80 | 50 | 35 | 25 | 15 |
Drum size(Φ×L) | mm | Φ1750×1200 | Φ1460×1200 | Φ1300×1200 | Φ1100×1060 | Φ990×930 | Φ915×770 | Φ760×680 |
Motor power | kw | 5.2 | 3 | 2.7 | 2.2 | 2.2 | 1.5 | 0.92 |
Natural Gas Consumption | m3/h | 6.33 | 4.41 | 3.45 | 2.69 | 2.3 | 1.92 | 1.34 |
Weight | kg | 1300 | 800 | 600 | 500 | 450 | 350 | 250 |
External Size | Length | mm | 1830 | 1470 | 1305 | 1200 | 1100 | 970 | 820 |
| Width | mm | 1760 | 1740 | 1650 | 1600 | 1480 | 1280 | 1160 |
| Height | mm | 2800 | 2420 | 2340 | 2200 | 2050 | 1900 | 1500 |
Model | Unit | GTQZ-12Q | GTQZ-10Q | GTQZ-08Q |
Capacity | kg | 12 | 10 | 8 |
Drum size(Φ×L) | mm | Φ680x680 | Φ680x570 | Φ680x450 |
Motor power | kw | 0.74 | 0.74 | 0.74 |
Natural Gas Consumption | m3/h | (Q)1.15 | (Q)0.96 | (Q)0.77 |
Weight | kg | 190 | 170 | 150 |
External Size | Length | mm | 740 | 740 | 740 |
| Width | mm | 1100 | 990 | 870 |
| Height | mm | 1320 | 1320 | 1320 |

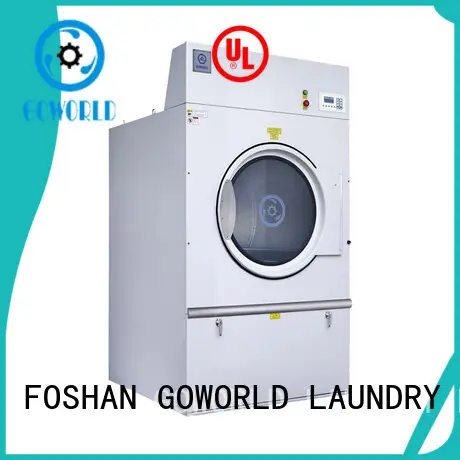

◆ 8kg to 150kg natural gas heat industrial clothes laundry dryer.
◆ Large lint collector, collect lint easily.
◆ Different door lock design for different capacity.
8kg-150kg natural gas heating industrial clothes laundry dryer is a series of industrial laundry dryer under the GOWORLD brand.It has the characteristics of clothes laundry dryer heating way use natural gas as source,natural gas is low pollutant and more environment friendly.when the machine working,computer control the laundry dryer process,will be automatically after drying finished and cold air directly into the drum that makes clothes temperature drop in the shortest time,it’s especially suitable for troop clothes dry,fire brigade clothes dry,pharmaceutical towels dry,garments factory towels dry,and laundering & dyeing tablecloths dry,etc.all the industrial clothes laundry dryer models have protect by CE certifications.
NO.1 / Big loading door
Big door for clothes loading,large transparent glass easy for guests to understand the drying process.
NO.2 / Multifunctional protector
Multifunctional protector,Multiple protection, safe and energy saving.
NO.3 / Large diameter bearing
Different bearing for needed dryer,large diameter design,support industrial clothes dryer rotation.
NO.4 / Stainless steel drum material
The drum is made of high quality durable stainless steel,beautiful and smooth barrel,easy to clean.
NO.5 / Natural gas value
Natural gas valve have good control and closed sealing performance.
NO.6 / Natural gas pipeline installation example
Example of natural gas pipeline installation with some country local safety standards.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. Being a trustworthy and professional manufacturer and supplier of industrial drying machine , FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has been highly recognized in the industry.
2. Thanks to the strict R&D process, our laundry dryer machine is unique in its great performance.
3. To be a high-end brand in electric tumble dryer industry, GOWORLD strives to make the best out of it. Inquire! GOWORLD determines to be the leading clothes dryer machine manufacturer in accordance with the spirit of gas tumble dryer . Inquire! FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD will do our utmost to meet our customers' satisfaction. Inquire! FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD will provide necessary help for all our customers after buying our tumble dryer machine . Inquire!
