Company Advantages1. GOWORLD roller ironing machine is the outcome of fusions of ideas from technicians. It is developed with thermorelay, fuse protector, and overcurrent relay which serve as overload protection elements.
2. This product is highly recognized with the help of a large sales network. The free-standing design allows it to be installed on any floor on any building level
3. This product guarantees better fire security. Glowing/hot-wire based fire hazard testing ensures its materials meet the standards of IEC 60695-2-10. Being programmable, it renders greater efficiency and flexibility
4. The product can run stably in rigorous conditions. The product is not affected by extreme weather conditions such as thunder lightning and heavy storm, nor high-temperature or humid condition. It is resistant to air, steam, water and other weak corrosive media
5. The product operates reliably under harsh conditions. It is not affected by severe weather conditions such as lightning and strong storms and is not affected by high temperature and humid conditions. It is ideal for residential and nursing homes, hotels, hospitals, student accommodation, etc
Model |
| YDK II - 3000 | YZKI I - 3000 | YZK I - 3000 |
Roller number | unit | 2 | 2 | 1 |
Roller width | mm | 3000 | 3000 | 3000 |
Roller diameter | mm | 800 | 800 | 800 |
Feeding speed | m/min | 5-22 | 5-22 | 3-13 |
Total power | kw | 73.5 | 1.5 | 1.5 |
Steam consumption | kg/h | / | 170 | 85 |
Weight | kg | 2100 | 2200 | 1200 |
External Size | Length | mm | 4060 | 4060 | 4060 |
Width | mm | 2570 | 2400 | 1500 |
Height | mm | 1360 | 1360 | 1360 |
Model |
| YQKI-3000 | YQKII-3000 | YQKIII-3000 |
Roller number | unit | 1 | 2 | 3 |
Roller width | mm | 3000 | 3000 | 3000 |
Roller diameter | mm | 800 | 800 | 800 |
Feeding speed | m/min | ≦7 | ≦15 | ≦20 |
Frequency power | kw | 1.5 | 2.2 | 4 |
Motor power | kw | 0.75 | 1.5 | 3 |
Gas pressure | mbar | 30 | 30 | 30 |
Weight | kg | 2000 | 2700 | 3400 |
External Size | Length | mm | 4060 | 4060 | 4060 |
Width | mm | 1700 | 2700 | 3600 |
Height | mm | 1350 | 1350 | 1350 |
◆ Roller heating,high temperature.
◆ Anti-curliness device can prevent the fabrics curling in the roller.
◆ Big touch screen controller to adjustable the inverter to control speed.

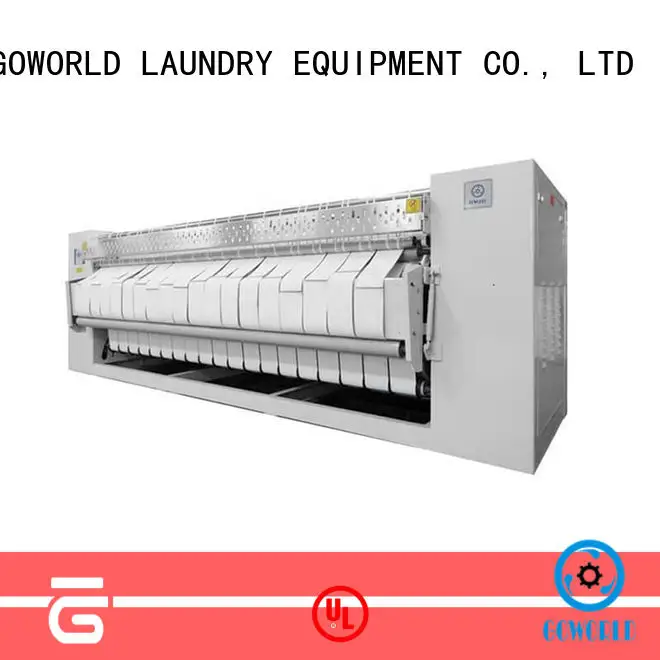

Roller style bed sheet flat ironer have steam heat,gas heat or electric heat as source to choose,steam heating roller can be order to single,double,three and four roll, and gas heating roller can be single,double,and three roll.electric heating roller can be order double roll.Roller style bed sheet flat ironer has the characteristics of roller length more than 3m,can be connected to folding machine directly,make the high ironing efficiency,the steam or gas with pressure is supplied through cylinder so that the flat ironed area can be heated evenly and effectively,machine with advanced converter motor and reducer,make big speed reducing rate and low noise, it’s especially suitable for hospital laundry,high grade hotel laundry, and textile laundry industries etc.
NO.1 / Bed sheet flat ironer large flat area
Large flat ironer area,meet the different material ironing need.
NO.2 / Bed sheet ironer heavy internal belt
Use the heavy internal belt,prevents from stretching and resistant to friction when machine running.
NO.3 / Flat ironer strong conveyor
Adopt steam union ,strong conveyor belt and chain to combination to drive.
NO.4 / Roller flat ironer full closed frame structure
Stainless steel roller ,full closed frame structure to ensure heating efficiency.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has developed into an influential company in China. We are a professional india ironing machine manufacturer that is highly reputable.
2. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD actively engages in catching up with the market demands and satisfying the customer needs of roller ironing machine.
3. Our goal is to provide consistent customer delight. We are putting efforts on providing innovative products at the highest level.
