GOWORLD equipment laundry dryer machine simple installation for laundry plants
Machine Type:
Industrial clothes laundry dryer:Natural gas type heating
Place of Origin:
Guangdong,China
Certificate:
CE & ISO &SGS passed
Lead Time:
15-20working days after TT deposit
Suitable For:
Suitable For:Industrial garments factory,hotel,hospital,laundering & dyeing clothes dryer,etc.
Capacity:
From 8kg,10kg,12kg,15kg,25kg,35kg,50kg,80kg,100kg to 150kg meet different laundry need
Machine Voltage:
380V,415V,440V,480V,220V,240V
Application Scope
GOWORLD LAUNDRY EQUIPMENT's laundry equipment suppliers can be used in a variety of situations.Since the establishment, GOWORLD LAUNDRY EQUIPMENT has always been focusing on the R&D and production of laundry equipment. With great production capability, we can provide customers with personalized solutions according to their needs.
Product Details
GOWORLD LAUNDRY EQUIPMENT adheres to the principle of 'details determine success or failure' and pays great attention to the details of laundry equipment suppliers.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of laundry equipment suppliers. It is of fine workmanship and good quality and is well sold in the domestic market.
1. GOWORLD hospital clothes dryer is developed based on cutting edge energy-saving technologies. All its electric components, such as connector, conductor, and printed circuit board, are sophisticatedly manufactured.
2. The product has passed the quality and performance tests conducted by the third party assigned by the clients.
3. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has a good operation system of production and quality control.
Product Specifications
GOWORLD
| Model | GTQZ-150Q | GTQZ-100Q | GTQZ-80Q | GTQZ-50 | GTQZ-35Q | GTQZ-25Q | GTQZ-15Q | ||
| Capacity | kg | 150 | 100 | 80 | 50 | 35 | 25 | 15 | |
| Drum size(Φ×L) | mm | Φ1750×1200 | Φ1460×1200 | Φ1300×1200 | Φ1100×1060 | Φ990×930 | Φ915×770 | Φ760×680 | |
| Motor power | kw | 5.2 | 3 | 2.7 | 2.2 | 2.2 | 1.5 | 0.92 | |
| Natural Gas Consumption | m3/h | 6.33 | 4.41 | 3.45 | 2.69 | 2.3 | 1.92 | 1.34 | |
| Weight | kg | 1300 | 800 | 600 | 500 | 450 | 350 | 250 | |
| External Size | Length | mm | 1830 | 1470 | 1305 | 1200 | 1100 | 970 | 820 |
| Width | mm | 1760 | 1740 | 1650 | 1600 | 1480 | 1280 | 1160 | |
| Height | mm | 2800 | 2420 | 2340 | 2200 | 2050 | 1900 | 1500 | |
| Model | Unit | GTQZ-12Q | GTQZ-10Q | GTQZ-08Q | |
| Capacity | kg | 12 | 10 | 8 | |
| Drum size(Φ×L) | mm | Φ680x680 | Φ680x570 | Φ680x450 | |
| Motor power | kw | 0.74 | 0.74 | 0.74 | |
| Natural Gas Consumption | m3/h | (Q)1.15 | (Q)0.96 | (Q)0.77 | |
| Weight | kg | 190 | 170 | 150 | |
| External Size | Length | mm | 740 | 740 | 740 |
| Width | mm | 1100 | 990 | 870 | |
| Height | mm | 1320 | 1320 | 1320 | |
Workshop Products
◆ 8kg to 150kg natural gas heat industrial clothes laundry dryer.
◆ Large lint collector, collect lint easily.
◆ Different door lock design for different capacity.
Product Details

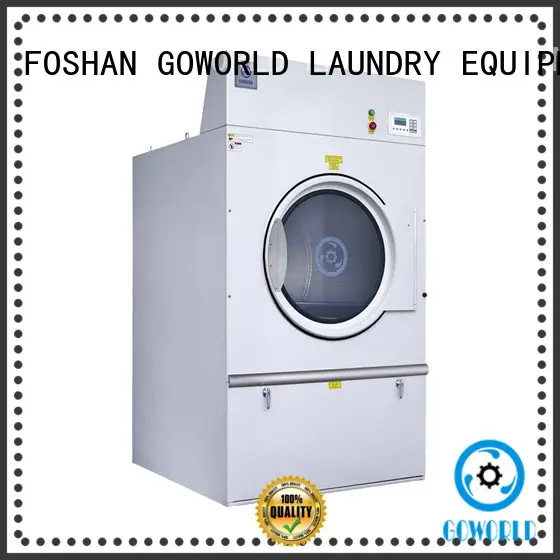

8kg-150kg natural gas heating industrial clothes laundry dryer is a series of industrial laundry dryer under the GOWORLD brand.It has the characteristics of clothes laundry dryer heating way use natural gas as source,natural gas is low pollutant and more environment friendly.when the machine working,computer control the laundry dryer process,will be automatically after drying finished and cold air directly into the drum that makes clothes temperature drop in the shortest time,it’s especially suitable for troop clothes dry,fire brigade clothes dry,pharmaceutical towels dry,garments factory towels dry,and laundering & dyeing tablecloths dry,etc.all the industrial clothes laundry dryer models have protect by CE certifications.
NO.1 / Big loading door
Big door for clothes loading,large transparent glass easy for guests to understand the drying process.
NO.2 / Multifunctional protector
Multifunctional protector,Multiple protection, safe and energy saving.
NO.3 / Large diameter bearing
Different bearing for needed dryer,large diameter design,support industrial clothes dryer rotation.
NO.4 / Stainless steel drum material
The drum is made of high quality durable stainless steel,beautiful and smooth barrel,easy to clean.
NO.5 / Natural gas value
Natural gas valve have good control and closed sealing performance.
NO.6 / Natural gas pipeline installation example
Example of natural gas pipeline installation with some country local safety standards.
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features
1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is the largest laundry dryer machine mold production base in China.
2. With professional and advanced labs equipped, GOWORLD can be more confident to manufacture exquisite industrial tumble dryer .
3. Our business philosophy is based on the highest standards. We always strive to better understand the wants, needs, and expectations of our customers and to constantly exceed them. We always regard science and technology as a core strength of business success. We will attach great importance to technological innovation and new product development, so as provide customers with more valued products. We strive to achieve our sustainability goals. We take steps to reduce greenhouse gas emissions, energy consumption, solid landfill waste, and water consumption.
