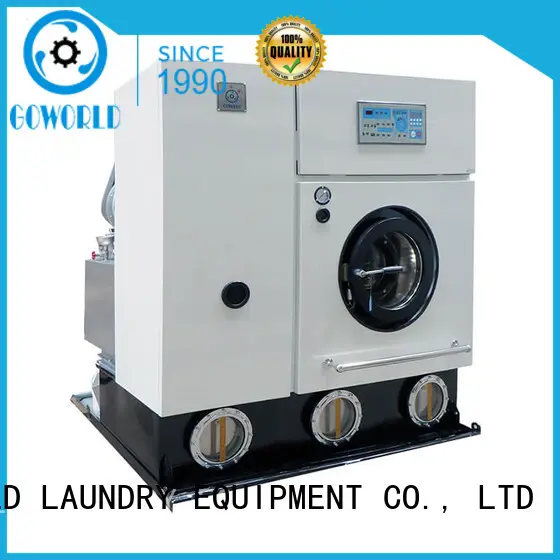

GOWORLD environment dry cleaning washing machine for laundry shop
Machine Type:
Dry cleaning machine model TC-3
Place of Origin:
Guangdong,China
Lead Time:
25-30working days after TT deposit
Suitable For:
Laundry shop,commercial laundromat,fire brigade,hotel,railway company
Machine Voltage:
380V,220V
Heat Way:
Electric heating,steam heating
Solvent:
Perchloroethylene
Product Comparison
GOWORLD LAUNDRY EQUIPMENT insists on the use of high-quality materials and advanced technology to manufacture laundry equipment. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.Supported by advanced technology, GOWORLD LAUNDRY EQUIPMENT has a great breakthrough in the comprehensive competitiveness of laundry equipment, as shown in the following aspects.
Application Scope
GOWORLD LAUNDRY EQUIPMENT's laundry machine can be applied to different fields.GOWORLD LAUNDRY EQUIPMENT always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
1. GOWORLD commercial dry cleaning machine goes through a series of sophisticated treatment to ensure its high quality. For example, the heat-treated process is conducted to eliminate any toxic elements.
2. The product is reliable in high quality and performance.
3. If there are any complaints about our dry cleaning washing machine, we will deal with immediately.
4. GOWORLD colleagues deeply believe the culture of the company.
Product Specifications
GOWORLD
| Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E | |
| Washing Capacity | kg | 8 | 10 | 12 | 14 | |
| Cylinder Capacity | L | 140 | 160 | 200 | 240 | |
| Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | |
| Extract Speed | r/min | 370 | 370 | 370 | 370 | |
| Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 | |
| Capacity | #3 | L | 112 | 112 | 112 | 129 |
| Still Tank Capacity | L | 150 | 150 | 150 | 150 | |
| Filter Area | m2 | 2.8 | 2.8 | 3 | 3 | |
| Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 | |
| Electric | Still | kw | 6 | 6 | 6 | 6 |
| Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
| Maximum Steam | kg/h | 30 | 32 | 34 | 36 | |
| Consumption | ||||||
| Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 | |
| External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
| Thickness | mm | 1450 | 1450 | 1450 | 1450 | |
| Height | mm | 2040 | 2040 | 2040 | 2040 | |
| Weight | kg | 800 | 850 | 900 | 950 | |
| Remark | 1.S－ Steam type E－ Electric type | |||||
| 2.Steam Pressure：4-6KG/CM2; Cooling Water Pressure：1.5-2kg/cm2 | ||||||
| 3.Power Source：380V/3P/50HZ | ||||||
Workshop Products
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.
Product Details
8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
PACKING & SHIPPING
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features
1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is a manufacturing company based in China. We have been providing quality commercial dry cleaning machine throughout our region and beyond.
2. We expect no complaints of dry cleaning washing machine from our customers.
3. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD's goal is to gradually develop from a small industry to a large industry. Check now! FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD will, as always, adhere to the policy of laundry dry cleaning machine . Check now!
