Company Advantages1. The design of GOWORLD laundry dry cleaning machine is completed by our internationally renowned designer who has re-elaborated and recreated a bathroom design which reflects a new aesthetic. This product has passed CE certification
2. We have quality assurance for our dry cleaning equipment over the years. It adopts the suspension structure to absorb the shock during the work
3. The product has precise specifications and functional parameters. It allows users to tailor the machine programmes exactly to their laundry requirements
Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E |
Washing Capacity | kg | 8 | 10 | 12 | 14 |
Cylinder Capacity | L | 140 | 160 | 200 | 240 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 |
Capacity | #3 | L | 112 | 112 | 112 | 129 |
Still Tank Capacity | L | 150 | 150 | 150 | 150 |
Filter Area | m2 | 2.8 | 2.8 | 3 | 3 |
Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 |
Electric | Still | kw | 6 | 6 | 6 | 6 |
|
|
|
|
|
|
|
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
Maximum Steam | kg/h | 30 | 32 | 34 | 36 |
Consumption |
|
|
|
|
|
Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2040 |
Weight | kg | 800 | 850 | 900 | 950 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.

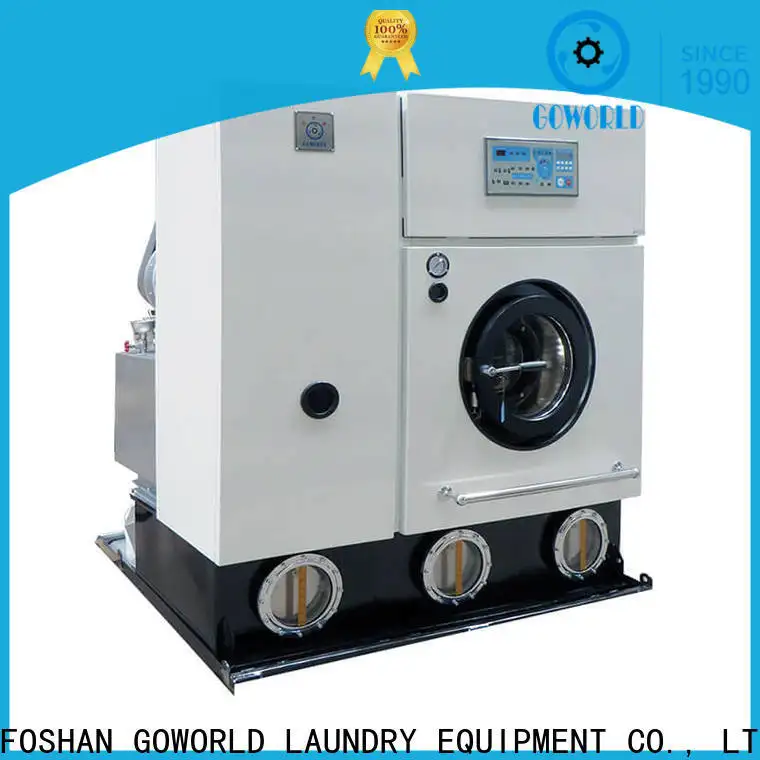

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has become one of the most valuable manufacturers in domestic markets. We offer services of laundry dry cleaning machine development, production, and supply. FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD is proud of our technical strength.
2. We have established a scientific management system to streamline the production processes. This advantage makes us competitive in terms of production speeds and costs.
3. We have a responsive team of expert engineers who each has a wealth of experience in the industry. They work with our customers to ensure that the project runs reliably and accurately. Our mission is to provide innovative products and services at the highest level. We aim to surpass customer expectations of quality, delivery, and productivity.
