Product Comparison
Closely following the market trend, GOWORLD LAUNDRY EQUIPMENT uses advanced production equipment and manufacturing technology to produce laundry equipment suppliers. The product receives favors from the majority of customers for the high quality and favorable price.Compared with similar products, GOWORLD LAUNDRY EQUIPMENT's laundry equipment suppliers is more advantageous in the following aspects.
Company Advantages1. The raw materials of GOWORLD laundry dry cleaning machine are eco - friendly and safe.
2. This product delivers optimum efficiency to the users.
3. Its quality is guaranteed by a rigorous scientific quality management.
4. People all agree that this product is a good helper for their devices. They don't have to worry about their devices will suddenly shut down.
5. Because of its flexibility, elasticity, resilience, and insulation, it is widely used in industrial, hygienic and medical applications.
Model | Unit | TC4020S/E | TC4025S/E | TC4028S/E | TC4032S/E | TC4036S/E | TC4040S/E |
Washing Capacity | kg | 10 | 12 | 14 | 16 | 18 | 20 |
Cylinder Capacity | L | 160 | 200 | 240 | 280 | 320 | 360 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 129 | 164 | 164 | 164 |
| #2 | L | 127 | 127 | 147 | 177 | 177 | 177 |
Capacity | #3 | L | 112 | 112 | 129 | 180 | 180 | 180 |
Still Tank Capacity | L | 150 | 150 | 150 | 205 | 205 | 205 |
Filter Area | m2 | 2.8 | 3 | 3 | 3 | 3 | 3 |
Total Motor Power | kw | 4 | 4.5 | 4.5 | 6 | 6 | 6 |
Electric | Still | kw | 6 | 6 | 6 | 6 | 6 | 6 |
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 8.1 | 8.1 | 8.1 |
Maximum Steam | kg/h | 32 | 34 | 36 | 40 | 42 | 44 |
Consumption |
|
|
|
|
|
|
|
Maximum Water Consumption | kg/h | 450 | 500 | 550 | 580 | 600 | 620 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1940 | 1940 | 1940 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2200 | 2200 | 2200 |
Weight | kg | 850 | 900 | 950 | 1100 | 1150 | 1200 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Lots of recruitment of nylon filter.
◆ Full-closed refrigerated recovery system.
◆ Solvent: Polyethylene.can be cycle to use.
◆ Electric or steam heating can be choose by customer.
◆ Three kinds of solvent tanks to meet demand for colored clothes.

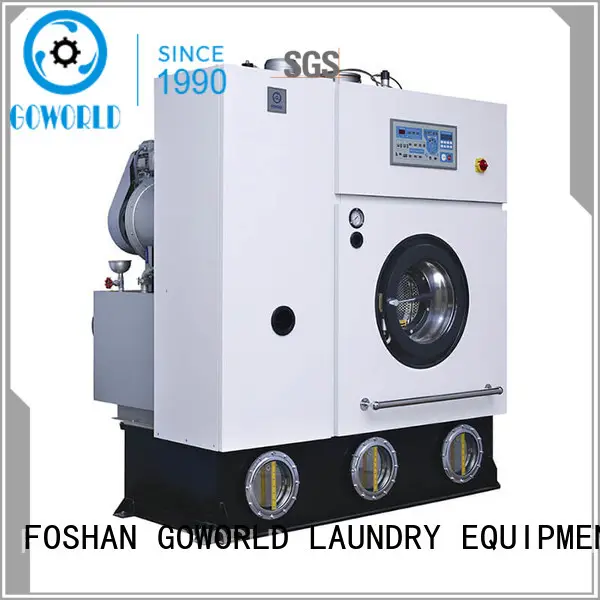

10kg-20kg hotel clothes dry cleaner environment friendly full closed machine is through the collection of the organic solvents,filtered,and the condensate recovery when dry cleaning,implements the dry cleaning solution recycling,save the cost of solvent and has reached the requirement of environmental protection,have the characteristics of carbon basket system and full-closed refrigerated recovery system,no need to add diatom,so it’s no pollution to the air, no harm to human, keep the room fresh.it’s especially suitable for hotel,laundry shop,textile industries,fire brigade etc.
NO.1 / 10kg-20kg hotel clothes dry cleaner full closed door lock system
Full-closed door lock system,Pneumatically controlled door lock switch, the outside can not be opened during work operation, preventing dry cleaning oil leakage.
NO.2 / 10kg-20kg hotel clothes dry cleaner button trap
Button trap,Stainless steel component parts to ensure stable running .The working solvent is coarsely filtered to remove impurities such as buttons and coins that are dropped during the washing process.
NO.3 / 10kg-20kg hotel clothes dry cleaner lint trap
Lint trap,The door is equipped with a safety switch,When the door is opened, the computer alarms, the machine is self-locking and cannot work.
NO.4 / 10kg-20kg hotel clothes dry cleaner consists systems
Hotel clothes dry cleaner consists systems:washing system,filtration system,distillation system,drying and recycling system,solvent storage tank,pump,lint trap and button trap.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
