Application Scope
GOWORLD LAUNDRY EQUIPMENT's laundry equipment can be used in many industries.In addition to providing high-quality products, GOWORLD LAUNDRY EQUIPMENT also provides effective solutions based on the actual conditions and the needs of different customers.
Product Details
GOWORLD LAUNDRY EQUIPMENT pays great attention to details of laundry equipment suppliers. laundry equipment suppliers has the following advantages: well-chosen materials, reasonable design, stable performance, excellent quality, and affordable price. Such a product is up to the market demand.
Company Advantages1. Advanced computer-aided technologies are applied in GOWORLD dry cleaning equipment design. Its phototype is created using CAD and CAM technologies by the designers.
2. The product has a superior appearance. It is innovatively designed with visual impact and has a high-gloss finish that is provided by RTM technology.
3. The product features good deformation resistance. When a sufficient load from a machine is applied to it, it will not happen to change shapes.
4. The product is highly praised by our customers for its wide range of applications.
Model | Unit | TC3015S/E | TC3020S/E | TC3025S/E | TC3028S/E |
Washing Capacity | kg | 8 | 10 | 12 | 14 |
Cylinder Capacity | L | 140 | 160 | 200 | 240 |
Washing Rotation Speed | r/min | 34 | 34 | 34 | 34 |
Extract Speed | r/min | 370 | 370 | 370 | 370 |
Base Tank | #1 | L | 112 | 112 | 112 | 129 |
| #2 | L | 127 | 127 | 127 | 147 |
Capacity | #3 | L | 112 | 112 | 112 | 129 |
Still Tank Capacity | L | 150 | 150 | 150 | 150 |
Filter Area | m2 | 2.8 | 2.8 | 3 | 3 |
Total Motor Power | kw | 4 | 4 | 4.5 | 4.5 |
Electric | Still | kw | 6 | 6 | 6 | 6 |
|
|
|
|
|
|
|
Heated Power | Drying | kw | 6.75 | 6.75 | 6.75 | 6.75 |
Maximum Steam | kg/h | 30 | 32 | 34 | 36 |
Consumption |
|
|
|
|
|
Maximum Water Consumption | kg/h | 400 | 450 | 500 | 550 |
External Size | Width | mm | 1690 | 1690 | 1690 | 1690 |
Thickness | mm | 1450 | 1450 | 1450 | 1450 |
Height | mm | 2040 | 2040 | 2040 | 2040 |
Weight | kg | 800 | 850 | 900 | 950 |
Remark | 1.S- Steam type E- Electric type |
2.Steam Pressure:4-6KG/CM2; Cooling Water Pressure:1.5-2kg/cm2 |
3.Power Source:380V/3P/50HZ |
◆ Easy operated environment friendly.
◆ Energy saving dry cleaning machine.
◆ Full-closed refrigerated recovery system.
◆ Electric or steam heating can be choose.

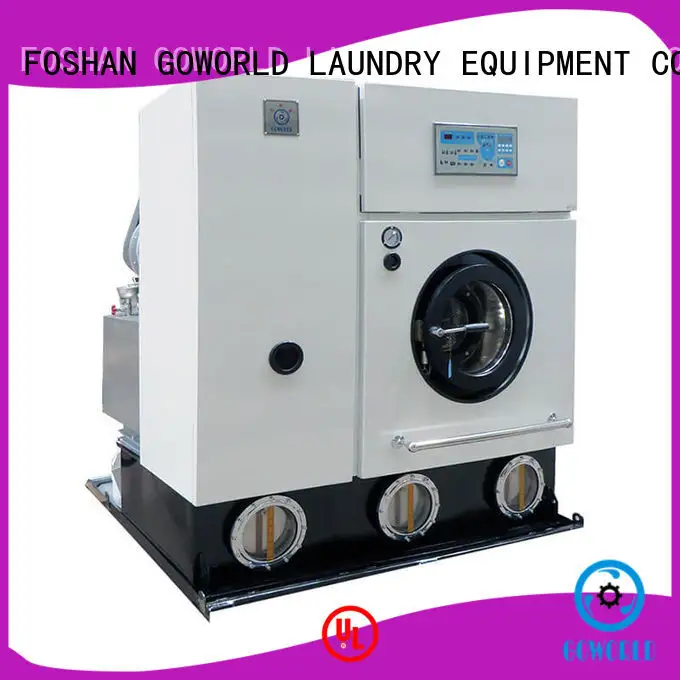

8kg-14kg dry-cleaning machine environment friendly full closed machine drum is in stainless steel,non-ferrous metals stamping with mold crafted, high-temperature galvanizing technology.have the functions of perchloroethylene recycle working system,distilling,condenser,and filter finished by computer control .there are three bottom tanks to separate clean, dirty and working solvent,so it’s has good sealing performance and eliminates.it’s especially suitable for hotel,laundry shop,railway company,and textile industries,etc..
NO.1 / 8kg-14kg dry-cleaning machine solvent tanks
Solvent: Perchloroethylene,there are three bottom tanks to separate clean,dirty and working solvent,make its can be cycle to use.
NO.2 / 8kg-14kg dry-cleaning machine water separator
Water separator,being durable by adopting stainless steel materials,full-closed to protect the environment.
NO.3 / 8kg-14kg dry-cleaning machine filter
Filter,lots of recruitment of Nylon filter can achieve high cleanliness,reduce the energy consumption.
NO.4 / 8kg-14kg dry-cleaning machine water inlet and outlet system
Water inlet and outlet system,full computer control programs can finish all the washing processes by will.
We support both OEM & ODM packaging. Our normally delivery method are by the sea, by air, by international express (DHL, UPS, TNT, FedEx)
Company Features1. After involved in the dry cleaning equipment industry for years, FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD has been highly recognized.
2. Our factory faithfully implements the management systems of ISO 9001 and ISO 14001 to manufacture products. These ISO management systems not only guarantee the products' quality but also ensure that the products are friendly to the environment.
3. Where there is a need from customers, FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD will provide timely help. Welcome to visit our factory! High quality is top list of FOSHAN GOWORLD LAUNDRY EQUIPMENT CO., LTD. Welcome to visit our factory! GOWORLD insists on dry cleaning machine first and provides high quality and efficient services. Welcome to visit our factory! It has been widely recognized that GOWORLD now is a specialist in dry cleaning washing machine industry. Welcome to visit our factory!
