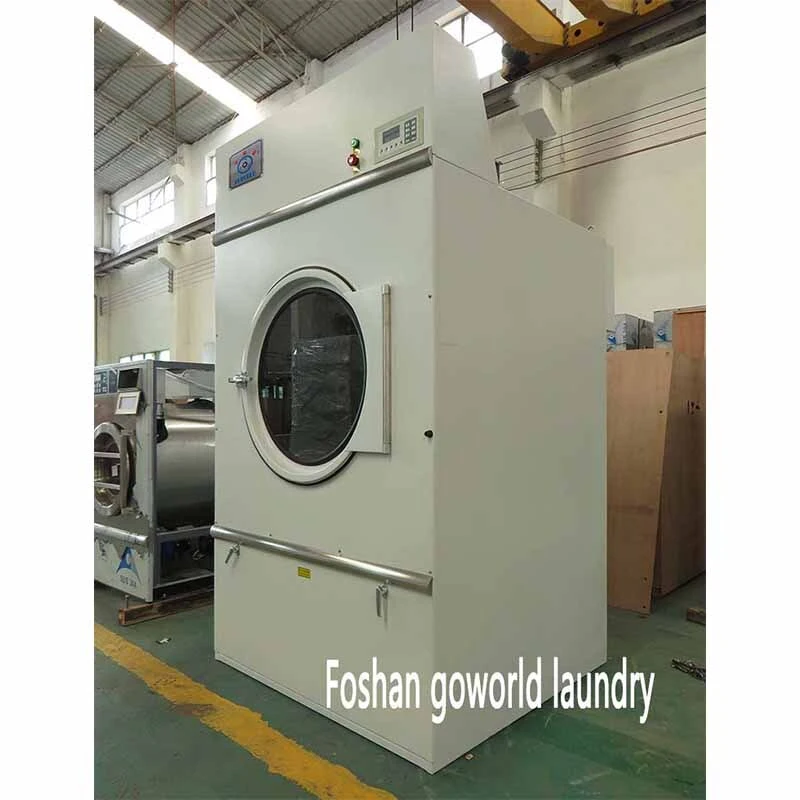

80-150KG Electric Heating industrial cloth washing machine drying machine
Foshan Goworld Laundry Equipment CO.,Ltd was built in 1990year. It is a famous company of “GOWORLD”laundry equipment in Zhujiang Delta which is a Developed industry area. Its factory is about 15000m2. It is major in producing a series of washing machine, drying machine dry-cleaning machine, ironing equipments.
80-150KG Electric Heating industrial cloth washing machine drying machine
| Mode | XGQ-150F | XGQ-120F | XGQ-100F | XGQ-80F | ||
| Capacity | kg | 150 | 120 | 100 | 80 | |
| Drum size(Φ×L) | mm | Φ1320×1100 | Φ1220×1030 | Φ1220×860 | Φ1220×690 | |
| Washing speed | r/min | 32 | 33 | 33 | 33 | |
| Extract speed | r/min | 660 | 670 | 670 | 670 | |
| Motor power/ Heat power | kw | 22 | 18.5 | 15 | 11 | |
| Cycle | Electricity Consumption | kw/h | 4.5 | 3.4 | 3.1 | 2.8 |
| Water Consumption | m3 | 2 | 1.5 | 1.3 | 1.1 | |
| Steam Consumption | kg/time | 130 | 100 | 80 | 70 | |
| Weight | kg | 4100 | 3500 | 3150 | 2850 | |
| External Size | Length | mm | 1950 | 1850 | 1850 | 1850 |
| Width | mm | 2120 | 2040 | 1840 | 1670 | |
| Height | mm | 2030 | 2030 | 1700 | 1700 | |
| Model | GZ(D)(Q)Z -150Q | GZ(D)(Q)Z -100Q | GZ(D)(Q)Z -80Q | ||
| Capacity | kg | 150 | 100 | 80 | |
| Drum size(Φ×L) | mm | Φ1750×1200 | Φ1460×1200 | Φ1300×1200 | |
| Heat power | kw | 65 | 45 | 36 | |
| Motor power | kw | 5.2 | 3 | 2.7 | |
| Steam Consumption | kg/h | 210 | 160 | 130 | |
| LPG Consumption | kg/h | 4.95 | 3.45 | 2.7 | |
| Natural Gas Consumption | m3/h | 6.33 | 4.41 | 3.45 | |
| Weight | kg | 1300 | 800 | 600 | |
| External Size | Length | mm | 1830 | 1470 | 1305 |
| Width | mm | 1760 | 1740 | 1650 | |
| Height | mm | 2800 | 2420 | 2340 | |
1. Computer control, with automatic programs and manual programs for choice. The working condition can be displayed on the screen directly. Cool down the drying material automatically for safe use.
2. Stainless steel drum., with over-load protection.
3. With on, off and temperature automatic shifting function .Improve heat efficiency
4. It is available to set the temperature and drying time by will. It is with maximum temperature limit protect switch to ensure safe operation.
5. It is available to run in one-way direction and two-way direction.
6. Heavy-duty drive and door system to make the machine run at low noise and steadily.
7. The drum is designed to resist wrinkle and twining The machine is with wool fiber clean system, with cool and hot air choice programs ,This can ensure the ideal drying effect ,special for high grade clothes.
8. CE certificate.
