8-15kg Self-service Commercial Combo Washer Dryer-gas or LPG heat type
8kg -15kg Self-service Commercial Combo Washer Dryer-gas or LPG heat type
Structure:Belt transmission , low noise, saving space,Strong coin controller which is guard against theft. Easy operation and maintenance of lint filter.
Material:Large glass doors,The panel of coin exit and drying drum are made of thick stainless board.
Feature: Smooth appearance,Advanced computer control high strength,,High-efficiency steam heating elements, electric heating or gas heating Self-exhaust valve
About Washer and Dryer:
♣. The inner washing drum is designed with strong bearing structure to meet the high quality of washing and extracting need.
♣. The dryer ,four heating order models for choice:electric heating,steam heating,LPG gas heating,natural gas heating.
8kg-15kg Self-service Commercial Combo Washer Dryer PARAMETER:
| Model | Unit | WDC08S(E)(Q) | WDC10S(E)(Q) | WDC12S(E)(Q) | WDC15Q | |
| WDI08S(E)(Q) | WDI10S(E)(Q) | WDI12S(E)(Q) | WDI15Q | |||
| Capacity | kg | 8 | 10 | 12 | 15 | |
| Washer Drum size | mm | Φ580x310 | Φ580x380 | Φ580x460 | Φ670x425 | |
| Washing speed | r/min | 45 | 45 | 45 | 38 | |
| Dehydrating Speed | r/min | 530 | 530 | 530 | 540 | |
| Washer Motor Power | kw | 1.1 | 1.5 | 1.5 | 2.2 | |
| Heat Power | kw | (E)7.5 | (E)9 | (E)12 | / | |
| Steam Consumption | kg | (S)12 | (S)15 | (S)18 | / | |
| Dryer Drum Size | mm | Φ680x450 | Φ680x570 | Φ680x680 | Φ760x680 | |
| Dryer Heat Power | kw | (E)7.8 | (E)9.6 | (E)9.6 | / | |
| Dryer Motor Power | kw | 0.74 | 0.74 | 0.74 | 0.92 | |
| Steam Consumption | kg/h | (S)25 | (S)30 | (S)35 | / | |
| LPG Consumption | kg/h | (Q)0.6 | (Q)0.75 | (Q)0.9 | (Q)1.05 | |
| Natural Gas Consumption | m3/h | (Q)0.77 | (Q)0.96 | (Q)1.15 | (Q)1.34 | |
| Weight | kg | 420 | 450 | 500 | 515 | |
| External Size | Length | mm | 800 | 800 | 800 | 820 |
| Width | mm | 1030 | 1150 | 1260 | 1320 | |
| Height | mm | 1985 | 1985 | 1985 | 2125 | |

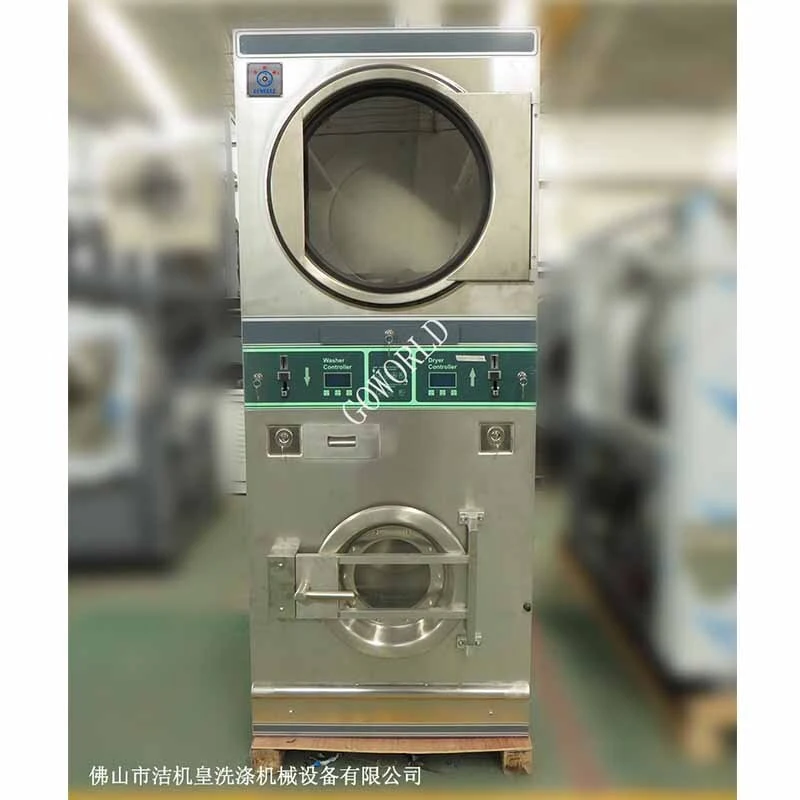

8kg-15kg Self-service Commercial Combo Washer Dryer PHOTOES:
